Decision Workbench

This activity allows to successfully end the flow of an automated process where human inputs are required to complete the task.

Once the Decision Workbench activity is encountered in the process workflow (also referred as parent process), a task gets created in the Albie Decision Workbench application. The Subject Matter Expert (SME) then reviews the information available in the task to submit the required inputs to complete the task. Submission of the required inputs in the Albie Descision Workbench application triggers the subsequent process as configured in the parent process workflow using Decision Workbench activity.

Prerequisite

·       The subsequent process should have already been created and deployed.

·       In case the processes have been imported from a different environment, the subsequent process should be deployed before executing the parent process.

Using Decision Workbench Activity

1.    In the Canvas Tools pane, click Contextual Intelligence to expand the tool and view the associated activities.

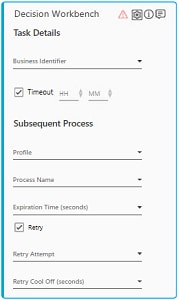

2.    Drag the Decision Workbench activity and drop on to the Flowchart designer on the  Canvas.

3.    Under the Task Details section:

a.    In the Business Identifier list, select the parameter that holds the identifier of the business task that you want to execute. This identifier helps you to identify the required task in the Albie Decision Workbench application. You must define the parameter in the Parameter bar to use this option. The value of the identifier displayed the Albie Decision Workbench application is limited to 50 characters and it ignores any inline characters. However, the defined value can be of any length.

b.    Select the Time Out check box, and enter the time in HH:MM format that signifies the duration after which the task in Albie Decision Workbench application must be moved from InProgress to Open state. It is recommended to set the Time Out time for processes that have longer execution time.

4.    Under the Subsequent Process section:

a.    In the Profile list, select the Profile that is assigned to the subsequent process.

b.    In the Process Name list, select the process you want to trigger after the input is submitted by the process SME in the Albie Decision Workbench application. The subsequent process must be in the deployed state to be available for selection in the list.

c.     In the Expiration Time (seconds) list, select the parameter that holds the value of the expiration time of the subsequent process transaction. You must define the parameter in the Parameter bar to use this option. This value lets the parent process wait for the specified time to complete the subsequent process transaction before the next action in the process workflow is executed.

d.    Select the Retry check box, if you want the subsequent process to be retried in case the process execution did not execute successfully. The Retry Attempt and Retry Cool Off (Seconds) fields are enabled if the Retry check box is selected.

e.    In the Retry Attempt list, select the parameter holding the value of the number of attempts to be made to retry the subsequent process transaction if it is not executed by the robot successfully.

f.      In the Retry Cool Off (seconds) list, select the parameter holding the value of the time after which retry must be attempted.

Following configurations can be done for Albie Decision Workbench and the subsequent process:

Configure Inputs for Albie Decision Workbench

This lets you configure the relevant information that is presented in Albie Decision Workbench to enable the SME to provide the required inputs. You can also configure the inputs that are required from the SME here itself.

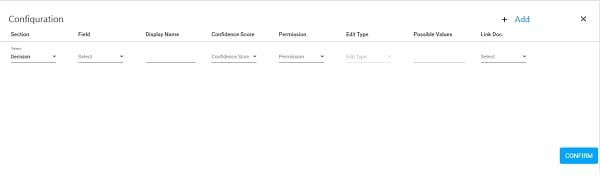

1.    Click the (Settings) icon and then click Configuration. The Configuration dialog box appears.

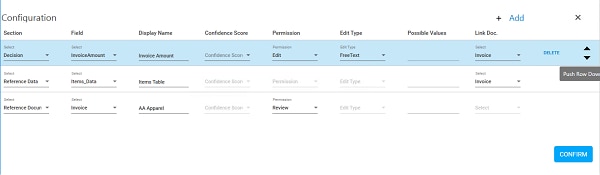

2.    By default, in the Section column, Decision is available. Click Add to add a new row entry. You can point to a particular row entry and click Delete to delete the added details. Use the Push Row Down and Push Row Up options to change the sequence of the configuration entries.

3.    Select the relevant information that can be configured to be sent to the  Albie Decision Workbench application based on the following descriptions:

4.    Click CONFIRM.

The fields and information to be displayed in the Albie Decision Workbench application is configured.

Map Subsequent Process Inputs

You can align the process input data of the subsequent process with the parameters of the parent process.

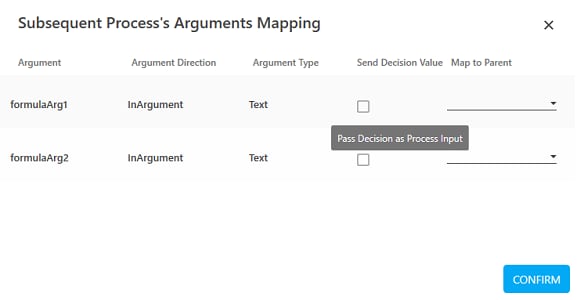

1.    Click the (Settings) icon and then click Subsequent Process Input. The Subsequent Process's Arguments Mapping dialog box appears. It displays the list of process inputs of the selected subsequent process.

The Argument column displays the parameter name of the subsequent process input. The Argument Direction column specifies the direction of the data flow. The Argument Type defines the type of the input data.

2.    In the Send Decision Value column, select the Pass Decision as Process Input check box of the required Argument to indicate if the decision taken by the SME in the Albie Decision Workbench application must be sent as a process input to the subsequent process. It filters the parameters’ list and only displays the parameters that are selected in the Decision section and have Permission as Edit. If you mark a Data Table data type to be sent to the subsequent process, the decision is passed as a JSON to the subsequent process from the Albie Decision Workbench application. See Passing DataTable as Input to Subsequent Process section to know the details.

3.    In the Map to Parent column, select the parameter of the required Argument from the list. You must define the parameter in the Parameter bar to use this option. It filters the parameters based on the type of input data type of the parent process.

4.    Click CONFIRM.

The subsequent process inputs are configured.

Configure Sections Labels for Albie Decision Workbench Inputs

It lets you configure labels for then section names as per the business scenarios. If the labels are not configured, default labels are displayed on Albie Decision Workbench for section headings.

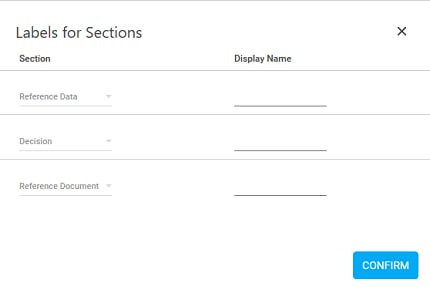

1.    Click the (Settings) icon and then click Section Labels. The Label of Sections dialog box appears.

2.    Enter desired names in the Reference Data, Decision and Reference Document sections as their respective labels.

3.    Click CONFIRM.

The Decision Workbench activity is configured.

Setup Environment and perform test run to test the activity.

The following sample displays the console output upon successful execution of the Descision Workbench activity during test run.

Passing DataTable as Input to Subsequent Process

The data of type Data Table marked to be sent as a process input to the subsequent process is passed as a JSON to the subsequent process after the inputs in Albie Decision Workbench application are submitted by the process SME. The JSON must be converted to a DataTable in the subsequent process to retrieve the values for further processing. In Automation Studio, you can easily do the conversion using out of box activities JSON Activity and Create Data Table activity.

DataTable that is reviewed and edited by the process SME in Albie Decision Workbench application and the existing data of the edited fields are both passed in the JSON to the subsequent process. This helps to retain the older and the edited values passed.

Edited data can be retrieved with the same headers as defined in the DataTable input. But the data prior to edit is always passed with default headers in Automation Studio defined as CIndex, RIndex and Value. Here CIndex represents column number, RIndex represents row number and Value signifies the value before editing was done.

Following is the sample of converting JSON into a DataTable:

1.    In the subsequent process workflow, create two DataTables using Create Data Table activity. You must provide unique names to the DataTables. This lets you store the input received from the process SME after the table is edited and the non-edited older values.  Add at-least one column while creating the DataTables. The DataTable that stores the values of the edited table, one of the original column names can be used as the column name and configure CIndex as a column header for the DataTable that stores the values of the cells before editing. This sets the header from the original table and the default headers defined in Automation Studio respectively.

2.    Create a parameter of string type with the exact name as the name of the DataTable that is set as Process Input for the subsequent process in the Decision Workbench activity. This parameter is used to store the JSON passed to the subsequent process. Following is a sample JSON printed in the console of Automation Studio, where the old data and the DataTable edited by the SME is printed with details related to laptop inventory:

3.    In the subsequent process workflow, drag the JSON Activity and drop on the Flowchart designer are of the Canvas. This activity is used to retrieve the values from the process input that is passed as a JSON to the subsequent process.

4.    In the JSON Action list, select Getter to fetch data from the JSON input,

5.    In the JSON Input list, select the parameter created to store the JSON passed to the subsequent process.

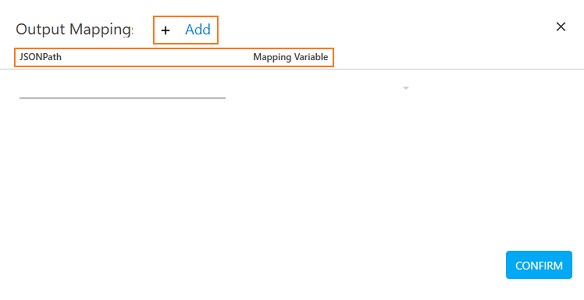

6.    Click the (Settings) icon, and then click Output Mapping to assign the fetched data to the DataTable for further processing. The Output Mapping dialog box appears.

7.    Click Add to assign the data present in the JSON to the DataTable created for storing edited values.

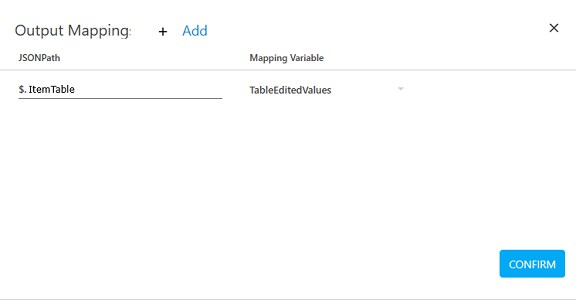

8.    In the JSONPath field, enter the JSON path expression as $.<parametername> (for example, $.ItemTable)to retrieve the edited DataTable. Here <parametername> is the name of the parameter created, that stores the JSON passed to the subsequent process.

9.    In the Mapping Variable list, select the DataTable created for storing the edited values.

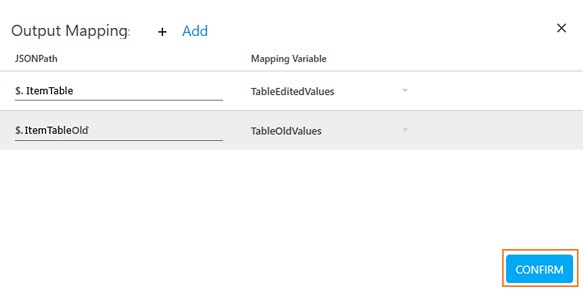

10.  Click Add once again to assign the data present in the JSON to the DataTable created for storing the non-edited, original values.

11.   In the JSONPath field, enter the JSON path expression as $.<parametername>.Old (for example, $ItemTable.Old) to retrieve the data before it was edited. Here <parametername> is the name of the parameter created, that stores the JSON passed to the subsequent process.

12.  In the Mapping Variable list, select the DataTable created for storing the data before it was edited.

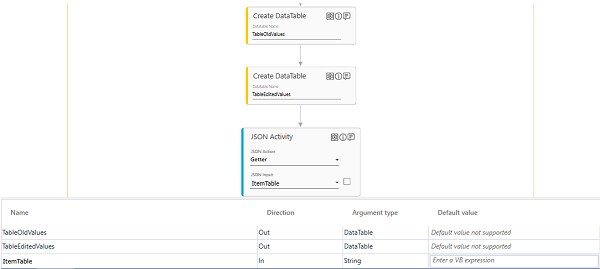

13.  Click CONFIRM to save the output mapping configuration. Following is the sample flow of converting JSON to a DataTable type:

The JSON is converted into DataTables.

Use the DataTable as per the requirement in the automation process workflow.

Decision Workbench Properties

The properties of a Decision Workbench activity are listed in the following table and can be edited in the Properties grid on the right panel.
