Create DataTable
This activity allows you to create a data table. By using this
activity, you can create a new customized data table in the Automation
Studio without having dependency on any application such as, excel.
Using Create DataTable Activity
1. In
the Canvas Tools pane,
click DataTable to expand
the tool and view the associated activities.
2. Drag
the Create DataTable activity
and drop on to the Flowchart
designer area on the Canvas.

3. Enter
a name for the datatable in the Datatable
Name field. A datatable is created with the name provided
in DataTable Name field.
NOTE:
|
Special
characters and space(s) are not allowed in the data table
name except underscore. You can define the data table
name in one single word or use underscore to separate
two words, for example, Attendance, Data_Table_1, Demo_file. |
4. Click
the (Settings)

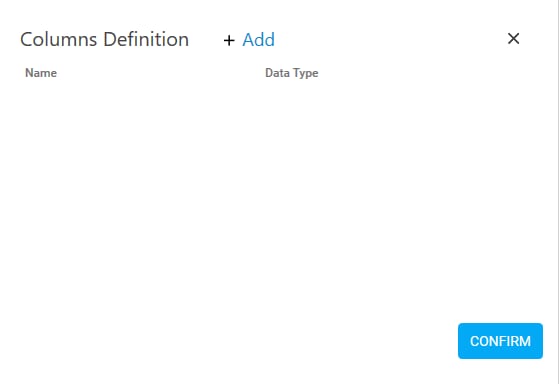

icon to add and define the columns in the Datatable. The Columns Definition window appears.

NOTE:
|
At
least one column is required in the data table. |
5. Click
Add to add column headers
and its associated Data Type in the Datatable.

It helps you create and customize
each new column you want to add to the data table. You can
define the columns and select the type of values that the new
column is going to accept.
§ Text – Select this if column
input is in string/text. For example, Student Name, Applicant
Name.
§ Numeric – Select this if column
input is in whole number. For example, 6, 45.
§ Decimal – Select this if column
input is in decimal number. For example, 7.89, 1.34.
§ Boolean – Select this if column
input is either true or false.
§ DateTime – Select this if column
input is in date and time format.
6. Click
CONFIRM to save the datatable.
Create DataTable Properties
The properties of Create DataTable
activity are listed in the following table and can be edited in
the Properties grid on
the right pane.
Property Name |
Usage |
Control
Execution |
Ignore
Error |
When this option is
set to Yes, the application ignores any error while
executing the activity.
If set to NA,
it bypasses the exception (if any) to let the automation
flow continue; however, it marks the automation status
as failure, in case of an exception.
By
default, this option is set to No. |
Delay |
Wait
After (ms) |
Specify
the time delay that must occur after the activity is executed.
The value must be in milliseconds. |
Wait
Before (ms) |
Specify
the time delay that must occur before the activity
is executed. The value must be in milliseconds. |
Misc |
Breakpoint |
Select
this option to mark this activity as the pause point
while debugging the process. At this point, the process
freezes during execution allowing you to examine if
the process is functioning as expected.
In
large or complex processes, breakpoints help in identifying
the error, if any. |
Commented |
Select
this option to mark this activity as inactive in the entire
process. When an activity is commented, it is ignored
during the process execution. |
DisplayName |
The
display name of the activity in the flowchart designer
area. By default, the name is set as Create DataTable.
You can change the name as required. |
IsExtracted |
Select
this option to mark the activity as transferring the information
to the bot in control tower, to check the data is extracted
successfully from DataTable before proceeding with subsequent
process. |
|
