Add Row

This activity allows you to add new row in the datatable.

Using Add Row Activity

1.    In the Canvas Tools pane, click DataTable to expand the tool and view the associated activities.

2.    Drag the Add Row activity and drop on to the Flowchart designer area on the Canvas.





3.    In the Datatable Name list, select a datatable to which the row is to be added.

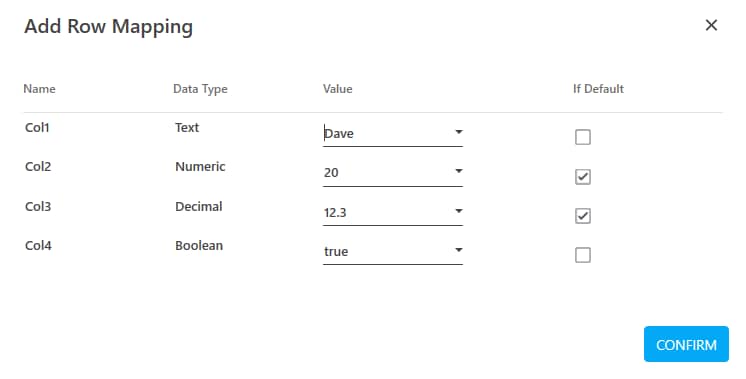

4.    Click the (Settings) icon to add a row in the existing datatable. The Add Row Mapping window appears.





5.    In the Value column, enter or select the value in the respective field.

In the Value list, select a parameter that holds the value. You must define the parameter in the Parameter bar to use this option. Alternatively, In the Value field, enter the value and select the If Default checkbox to set it as the default value.

6.    Click CONFIRM to add new row in the DataTable.

Add Row Properties

The properties of Add Row activity are listed in the following table and can be edited in the Properties grid on the right pane.


Property Name

Usage

Control Execution

Ignore Error

When this option is set to Yes, the application ignores any error while executing the activity.

If set to NA, it bypasses the exception (if any) to let the automation flow continue; however, it marks the automation status as failure, in case of an exception.

By default, this option is set to No

Delay

Wait After (ms)

Specify the time delay that must occur after the activity is executed. The value must be in milliseconds.

Wait Before (ms)

Specify the time delay that must occur before the activity is executed. The value must be in milliseconds.

Misc

Breakpoint

Select this option to mark this activity as the pause point while debugging the process. At this point, the process freezes during execution allowing you to examine if the process is functioning as expected.

In large or complex processes, breakpoints help in identifying the error, if any.

Commented

Select this option to mark this activity as inactive in the entire process. When an activity is commented, it is ignored during the process execution.

DisplayName

The display name of the activity in the flowchart designer area. By default, the name is set as Add Row. You can change the name as required.
