Sort DataTable
This activity allows you to sort the data in a datatable based
on the values of the specified columns. The values of the specified
column can be sorted in ascending or descending order only.
Using Sort DataTable
1. In
the Canvas Tools pane,
click DataTable to expand
the tool and view the associated activities.
2. Drag
the Sort DataTable activity
and drop on to the Flowchart
designer area on the Canvas.

3. In
the Datatable Name list,
select the datatable you want to sort.
4. Click
the (Settings)

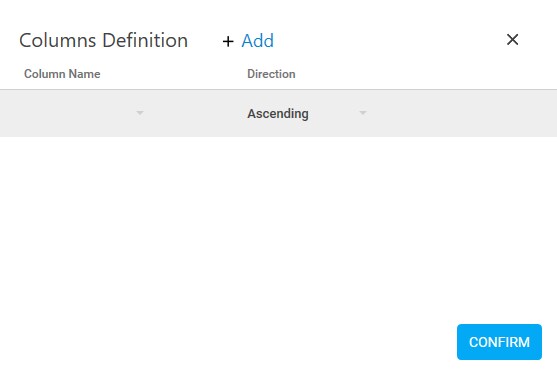

icon. The Columns Definition
window appears.

5. Click
Add to define a column
you want to sort.
6. In
the Column Name list,
select the column.
7. In
the Direction list, select
Ascending or Descending
depending on the order in which the table is required to be sorted.
8. Click
CONFIRM.
Sort DataTable Properties
The properties of Sort DataTable
activity are listed in the following table and can be edited in
the Properties grid on
the right pane.
Property Name |
Usage |
Control Execution |
Ignore
Error |
When
this option is set to Yes, the application ignores
any error while executing the activity.
If
set to NA, it bypasses the exception (if any) to
let the automation flow continue; however, it marks the
automation status as failure, in case of an exception.
By
default, this option is set to No. |
Delay |
Wait
After (ms) |
Specify
the time delay that must occur after the activity is executed.
The value must be in milliseconds. |
Wait
Before (ms) |
Specify
the time delay that must occur before the activity
is executed. The value must be in milliseconds. |
Misc |
Breakpoint |
Select
this option to mark this activity as the pause point
while debugging the process. At this point, the process
freezes during execution allowing you to examine if
the process is functioning as expected.
In
large or complex processes, breakpoints help in identifying
the error, if any. |
Commented |
Select
this option to mark this activity as inactive in the entire
process. When an activity is commented, it is ignored
during the process execution. |
DisplayName |
The
display name of the activity in the flowchart designer
area. By default, the name is set as Sort DataTable.
You can change the name as required. |
|
