Add Worksheet

Add Worksheet feature enables you to add a new worksheet to specific workbook in Office 365. The new worksheet is added at the end (position can be specified as minus one) or specific position as per the requirement of user in the workbook.



Using Add Worksheet feature

  1. Make sure the prerequisites for using Office 365 activities are met.
  2. In the Canvas Tools pane, click Office 365 Services to expand the tool and view the associated activities.
  3. Drag the Excel 365 activity inside the Office 365 Application Activity. Ensure that the output token of the OAuth process is passed on to the Excel activity for authentication. For more information, see OAuth Activity.
    1. The validation error symbol disappears when you select relevant values in the particular field from the available list. For example,  Access Token, Add Worksheet, and Output.

  4. In the Access Token list, select the output parameter holding the value of access token from the OAuth activity to pass in the Excel 365 activity. For more information, see OAuth activity.
  5. In the Feature list, select Add Worksheet.

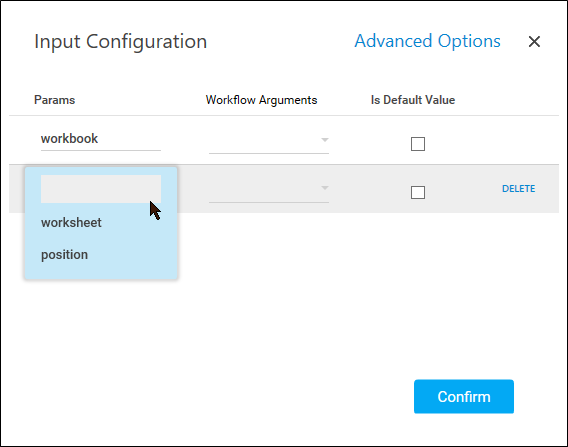

    1. Click the  (Setting) icon to configure the input configuration. The Input Configuration screen appears.

    2. Ensure to define all the input parameters as an in argument in the Parameter bar for selection in the mandatory and advanced options.
      1. Mandatory Options:
        1. In the workbook, select the parameter holding the path  along with workbook name or name (if workbook is in root folder) of the workbook wherein you want to add worksheet. For example, FolderName/WorkbookName.xlsx. Ensure to add the extension of excel while providing the name of workbook. i.e.xlsx.
      2. Advanced Options: Click Advanced Options to enter more input configuration as per your requirements.
        1. In the worksheet, select the name of newly created worksheet.
        2. In the position, select the position of worksheet. Positioning starts from zero.
      3. You can select the Is Default Value checkbox to set the selected input parameter as the default value.
      4. Click Delete to remove the input parameter from the advanced option list.
      5. Once done, click Confirm.
  6. In the Output list, select the argument which should store the result. The argument should be of Out Direction.
  7. Save the process.
  8. In the Tool bar, click Setup Environment.



    NOTE:

    You must select the relevant scope as per the activities in the automation process.

  9. Once environment setup is completed perform the Test Run. The studio console will display the successful message with the required output else, output will be blank.
    1. The Output is of the format: {"Excel added successfully at position": "1"}.
