Using Windows Mode

Unlike automation of web application, while configuring UI elements of the windows application, systems highlights the intended area and performs the subsequent action rather than just capturing the step of automation process workflow. For example, if you want to capture the X (Close) button of the windows application to automate closing of the application, the system closes the application when you click the area on the UI even before launching the Field Properties pane. To help avoid such scenarios, Windows Mode configuration lets you configure the UI elements in two different ways:

·       Default Configuration- Allows to configure the UI elements of the windows application by highlighting the area. It is useful when you only want to capture the area and there is no subsequent action taking place.

·       Advance Configuration- Allows to configure the UI elements of the windows application in a hierarchical manner available within an element tree. You can select the intended UI element to open the Field Properties pane without performing the subsequent action.

Scenarios where the WINDOWS MODE does not work as expected, you can even switch between WEB MODE and IMAGE MODE to configure the field.

Default Configuration

1.    Use the (Settings) icon of the required Application activity to launch Multimodal Interface. The configured application appears opens in the undocked mode. See Windows Application activity to know how to use the activity.





2.    Click the (Play) button to capture the UI elements within the intended application.

3.    Press the Ctrl key, hover over the windows application and simultaneously select the UI element to start capturing the automation steps that you want to perform in the windows application. The UI element that you can capture gets highlighted with a red box.

4.    Click the highlighted area. The Field Properties panel of the Windows Mode of the Windows application appears. The fields that are mandatory are highlighted with red box.





5.    In the Action list, select the action that you want to perform on the captured area. Other mandatory fields changes depending on the selection from the list. Enter details of all the mandatory fields and other relevant fields as per your requirement. Refer Field Properties table to know more about the available fields and their respective properties.

6.    Click the (Save) icon to configure the fields.

7.    Repeat step 2 through 5 to capture all the steps involved in the automation process workflow. The field that you configured and saved appears in the Saved pane of the Field Properties panel. You can edit or delete these steps in the Saved pane.

8.    Click the (Save configured field and return to studio) icon to save the field that you configured and return to the Studio menu.

The fields related to WINDOWS MODE using default configuration are configured.

Advance Configuration

1.    Use the (Settings) icon of the required Application activity to launch Multimodal Interface. The configured application appears opens in the undocked mode. See Windows Application activity to know how to use the activity.

2.    Click the (Play) button to capture the UI elements within the intended application. The Advance Configuration window box opens in the Task bar of the system, available behind the Multimodal Interface window.





3.    Click the Advance Configuration window to bring it in focus. It displays all the UI elements of the application under a tree structure.





4.    Expand and select the element from the Automation Element Tree. The corresponding UI element on the windows applications gets highlighted in red. It helps to identify the required UI element for automation.





5.    Click SELECT. The Field Properties panel of the Windows Mode of the Windows application appears. The fields that are mandatory are highlighted with red box.





6.    In the Action list, select the action that you want to perform on the captured area. Other mandatory fields changes depending on the selection from the list. Enter details of all the mandatory fields and other relevant fields as per your requirement. Refer Field Properties table to know more about the available fields and their respective properties.

7.    Click the (Save) icon to configure the fields.

8.    Repeat step 2 through 7 to capture all the steps involved in the automation process workflow. The field that you configured and saved appears in the Saved pane of the Field Properties panel. You can edit or delete these steps in the Saved pane.

9.    Click the (Save configured field and return to studio) icon to save the field that you configured and return to the Studio menu.

The fields related to WINDOWS MODE using advance configuration are configured.

Advance Configuration Special Cases

In some cases it is observed that while configuring the JavaScript pop-up in Chrome browser, the Advance Configuration tree is not able to highlight some of the inner UI elements of the pop-up box.

To highlight the intended element, try highlighting the closest element from the target UI element, and then click REFRESH button on the Advance Configuration tree.

In the below sample screen shot, the OK button does not appear in the Advance Configuration tree. Try highlighting the pane itself, and then click REFRESH.





The  Advance Configuration tree tries to find the target element that must start appearing after refreshing the configuration tree.





Windows Mode Control Properties and Field Descriptions

The properties of Windows Mode fields are listed in the following table:


Property Name

Usage

Control Behavior

Action

The applicable action or interaction that can be performed on the selected UI element. The available options change as per the window application being automated:

·        Click- Allows to left click the selected UI element.

·        Expand/Collapse- Allows to expand or collapse the selected UI element.

·        Legacy Interaction- Allows to configure UI element of the Windows application which supports a legacy pattern.

·         Get Text- Retrieves text from the selected UI element.

·         Set Text- Sets user provided text input to the selected UI element and stores it into a parameter. You must define the parameter in  the Parameter bar before you start capturing the UI element.

·         Mouse Click- Allows mouse simulation. It requires the application to be in focus. You can choose to perform Left Click, Right Click or Double Click available from the drop down list.

·         Keyboard Input-Captures UI element input from the keyboard in the selected UI element. This interaction allows performing different keyboard input combinations with the help of Single Key, Double Keys, Triple Keys and TextEntry options.

·         Set Focus- brings the UI element in focus before performing any action on it.

·         If Control Exists- Checks availability of the UI element on the windows application. It is used while working with dynamic controls.

·         Get Radio Button Status- Retrieves status of the selected radio button status. It returns true or false.

·         Toggle Checkbox Action- Toggles the current state of a checkbox.

·         Get Checkbox Status- Returns the current selection status of a checkbox.

·         Perform ComboBox Select Value- Selects the specified value from the drop-down list.

·         Get ComboBox Value- Retrieves value of the selected combo box.

·         Perform ComboBox Set Text- Sets a user-specified value on the selected ComboBox. All ComboBox controls do not support this interaction.

·         Scroll Horizontal- Performs horizontal scroll based on the input provided on the percentage scale from 0 to 100.

·         Scroll Vertical- Performs vertical scroll based on the input provided on the percentage scale from 0 to 100.

·         Select Tree Node- Selects a node of a tree control using this interaction. Specify the input in a specific format. For example. for selecting node 1.1, enter the input value as Number/1/1.1.



·         Expand Tree Node- Expands a node of the tree UI element.

·         Select- Selects a particular UI element.

·         Get DataGrid Value by Index- Retrieves data grid value by its index. Specify the cell index from which the input is needed.

·         Focus Data Grid Cell by Index- Brings a data grid cell in focus based on the input cell index.

·         Set DataGrid Value by Index- Sets the value to a DataGrid cell based on its index.

·         Get Data from Table- Retrieves complete data of a table control to a DataTable. If required, the data from the DataTable can then be saved in an excel/CSV file. Following are the steps involved to retrieve the data.

a.    Create an argument of type System.Data.DataTable, before extracting the UI element.

b.    Click WINDOWS MODE to extract the Data Grid Table control.

c.     Select Get Data from the Table.

d.    Set the  Variable Name as the argument created in the first step.

e.    Save the configuration.

f.      Use Export Data Table activity to write data to excel.

·         Set Focus- This interaction is used to bring any control to focus before performing an action on it.

Interaction

The corresponding interaction class name auto populated against the selected action.

Interaction

The interaction or the action type corresponding to the selected interaction.

Appears if Action selected is Legacy Interaction.

Action Type

The interaction or the action type corresponding to the legacy interaction.

Key

Appears if Action selected is Keyboard Input. The single key set as input from the keyboard.

Key

Appears if Action selected is Keyboard Input and Interaction selected is DoubleKeys. The second key which is set as input from the keyboard along with the first key.

Key

Appears if Action selected is Keyboard Input and Interaction selected is TripleKeys. The third key which is set as input from the keyboard along with the first and the second  key.

Text

Appears if Action selected is Keyboard Input and Interaction selected is TextEntry. Allows user input as a text.

Mouse Action

Appears if Action selected is Mouse Click. Allows user input using the mouse. Available options are:

·       LeftClick- Performs a left click at the specified offset point.

·       DoubleClick- Performs a double click at the specified offset point.

·       RightClick- Performs a right click at the specified offset point.

Field Properties

Display Name

User specified display name of the windows element selected.

AutomationId

Unique identifier for the automation element in the automation tree. See Handling Dynamic Controls section to know more about the usage of this field.

Class Name

Class name of the UI element as defined by the UI element  developer. See Handling Dynamic Controls section to know more about the usage of this field.

Container Class Name

Container class name of the UI element as defined by the developer. See Handling Dynamic Controls section to know more about the usage of this field.

Container Control Type

Control type of the container of the UI element as defined by the UI element  developer.

Container Name

Container name of the UI element as defined by the  developer. See Handling Dynamic Controls section to know more about the usage of this field.

Control Index

Index of the current UI element within the entire set of elements with the same values of automation Id, class name and UI element name as that of the current element.

Control Name

Control name of the UI element as defined by the UI element developer. See Handling Dynamic Controls section to know more about the usage of this field.

Control Type

Control type of the UI element as defined by the developer.

Appears if Action selected is Mouse Click.

Offset From Control

It is the distance between the UI element and the anchor.

Is applicable only for AssistEdge Engage. Appears if Action selected is If Control Exist.

Is C-View

If selected, the field configuration captured in Automation Studio is visible in the C-View tab of Engage application.

Search By Control Order No.

Signifies if the UI element needs to be searched based on the UI element order number. Control order number is the index of the current element within the entire set of elements with the same value of UI element Id as that of the current element.

Appears if Action selected is Get Text.

Variable Name

User defined name of the variable that stores the captured value.

Variable Type

Type of the variable defined. Available options are:

·       Text

·       Numeric

·       Decimal

·       Boolean

·       Data Table

Misc Properties

Max wait for input idle

The maximum time interval in milliseconds for which the windows plugin waits on launch before it starts executing the configured interactions.

Retry Count

Number of times, the plugin retries to find a UI element, if not found.

Retry Interval (ms)

The time interval in milliseconds for which the plugin waits before it attempts for a retry.



Handling Dynamic Controls

Automation Studio provides different identification criteria and Parametrization of the value of the dynamic field properties of the UI elements. You can reconfigure some of the auto captured field properties of such UI elements to create a more effective way of identifying the indented UI element.  For such controls, remove the dynamic part of the string and use an appropriate option for UI element identification. For example, if a Class Name field is recognized as AssistEdge_Studio_20180205083009, the later part of the string, which is a timestamp,is dynamic and can be removed. Retain only the static  part and reconfigure the field properties using the suitable option.

Following are the different field properties that can be reconfigured against their respective values:

·       AutomationId

·       Class Name

·       Container Class Name

·       Container Name

·       Control Name

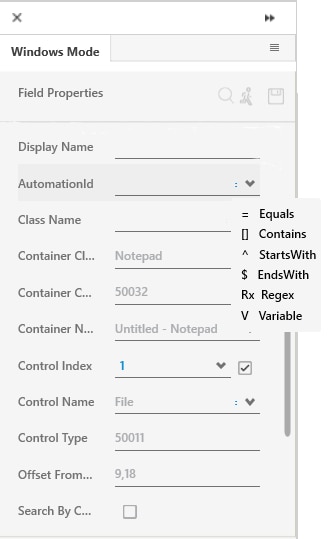

Use the (drop down arrow) icon to reconfigure the identification criteria. Available options are:

·       Equals- Identifies the UI element based on the exact match with the value of the selected field property.

·       Contains- Identifies the UI element based on the string present in the value of the selected field property.

·       StartsWith- Identifies the UI element based on the starting string of the value of the selected field property.

·       EndsWith- Identifies the UI element based on the ending string of the value of the selected field property.

·       Regex- Identifies the UI element with the string matching the value of the selected field property as per the identification pattern defined through the provided regular expression such as a.b, *txt and others.

·       Variable- Identifies the UI element as per the parametrization of the value of the selected field property value. Parametrization allows to run the identification process over and over again using different values. With parameterization, windows controls with looping and assignment activities, are used.
