Java Applications
This activity allows you to automate the actions performed on
the Java application such as testing Java applications or performing
operations on the UI.
The supported files types are - JAR, JNLP (Java Network Launch
Protocol) and Java Applet.
Prerequisites
· Install Java (JDK, v ) on
the system where the automation process workflow needs to be created
and where the automation would run.
· Configure
the required Java application in Automation Studio where
you want to perform the automation. Below are the minimum required
properties for configuring the intended Java application. If you
want to define remaining properties, refer JavaApps
section. To configure Java application with minimum required properties:
1. In
the Admin menu, add an
application of Application Type
- JavaApps.

2. Browse
and select the required .jar file.
3. In
the Application Properties
panel:
· Enter
the URL of the JNLP file/applet in the JarFilePath/URL
field.
· Enter
the time out duration of the application launch in the Launch Time Out (in secs) field, if the JavaAppType
is JNLP Applications or
Applet.
4. In
the Environment Type list,
select the type of environment of the added Java application.
5. Click
the
(Save Properties) icon
to save the application.
The Java application is configured.
Using Java Application Activity
1. In
the Canvas Tools
pane, click Process Components to
expand the tool and view the associated activities.
2. Drag
the Application activity and drop on to the Flowchart
designer on the Canvas
area. The validation error symbol disappears when required inputs
are provided in the correct format.

3. From
the Application Type list, select JavaApps. You
must have at least one application added for it to appears in
the list.
4. In the Select An Application
list, select the configured Java application that you want to
automate. Alternatively, you can add a new Java application at
this point of time. To add a Java application:
a. In
the Select An Application list, click Add
New Application. The Add
New Application dialog box appears.

5. In
the Application Type field, select the required application type
of the Java application you want to configure in Automation Studio.
Available options are:
· JavaApps
· JavaApps
- JNLP
· JavaApps
- Applet
6. In
the ApplicationName field,
enter a desired name of the Java application.
7. If
JavaApps is selected,
enter the file path along with the file name and extension of
the required JAR file in the JarFilePath
field.
8. If
JavaApps - JNLP is selected,
enter the URL of the JNLP file in the URL
field.
a. Enter
the time out duration of the application launch of the JNLP file
in the Launch Time Out(in secs)
field.
b. Enter
the window title of the JNLP window in the Launch
Window Caption field.
9. If
JavaApps - Applet is selected,
enter the URL of the Java applet in the URL
field.
· Enter
the time out duration of the application launch of the Java applet
in the Launch Time Out(in secs)
field.
10. In
the Environment Type list,
select the type of environment of the Java application. Available
options are:
· WINDOW_CLASS_BASED
· EVENT_BASED
11. Click
SAVE. The web application
is added.
12. Click
the (Settings.) icon to launch the Java MODE interface. The configured
Java application appears along with Java
MODE interface.

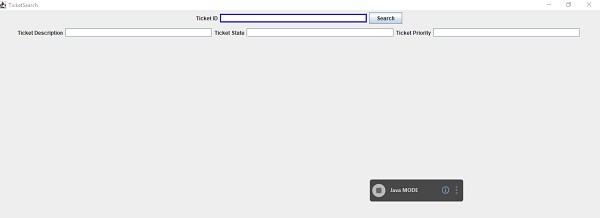

13. Click
the (Play) button to capture
the steps that you want to perform within the Java application. The Play
button changes to the (Recording)
button.
14. Hover
over the field that you want to capture. The field gets highlighted
with the blue box.

15. Click
the highlighted area. The Field Properties panel of
the Java MODE
appears. The fields that are mandatory are highlighted with red
box.

16. In
the Action list, select the action that you want
to perform on the captured area. Other mandatory fields change
depending on your selection from the drop down list. Enter
the required details. Refer Field Properties table to know more
about the available fields and their respective properties.
17. Click
the (Save) icon to configure
the fields.
18. Repeat
steps 13 through 17 to capture all the steps involved in the process.
The configured field is saved
and starts appearing in the Saved pane of the
Field Properties panel. You can edit or delete
these steps in the Saved pane, if required.
19. Click
the (Save configured field and return to
studio) icon to save the field that you configured
and return to the Studio menu.
The fields are configured and the
Application activity for Application
Type- JavaApps
is created.
Java Mode Control Behavior and Field Descriptions
The properties of the JAVA
MODE are listed in the following table:
Property Name |
Usage |
Control
Behavior |
Search Path |
|
Interaction
Behavior |
Action |
It is the action or the
interaction that can be performed on a Java application
depending on the type of UI element as per the requirement.
Available options are:
· Set Text - Sets the
user provided value of the UI element attribute and stores
it as the value of the parameter. You must define the
parameter in the Parameter bar before
you start capturing the element.
· Dock
Window -
· Click - Allows
to left click the selected UI element.
· Set Key Event Text -
Sets the user provided value of the keystroke event
that occurred in the selected UI element attribute and
stores it as the value of the parameter selected in the
Text field. You
must define the parameter in the Parameter
bar before you start capturing the element. Alternatively,
select the Is Default Value checkbox to set a default
value of the keystroke event.
· Get Text - Extracts
the current value of the selected UI element such as,
value of an input field , text box or the selected area.
· Get Table Cell Value
- Extracts the cell value from a table available in the
Java application by indicating the row and column of the
required cell.
· Get Table Data - Extracts
the table data in sting format with column and row details.
· Get Table Selected Rows
- Extracts the value from a table selected row available
in the Java application.
· Perform Table Click
- Clicks the area on the table as per the specified row
and column number.
· Perform Table DoubleClick
- Double clicks the area on the table as per the specified
row and column number.
· Perform
Table Row Selection -
· Get
Tree Data - Extracts the data from the specified
tree data structure in the XML format.
· Get
Tree Selection Paths - Extracts path of the selected
node in the tree data structure.
· Perform
Tree Click - Clicks the tree data structure as
per the selection path of a node.
· Perform
Tree DoubleClick - Double clicks the tree data
structure as per the selection path of a node.
· Perform
Popup Click On JTree - Clicks the pop menu item.
· Perform
TabbedPane Select
- Clicks the pane as per the specified pane title
of the Java application.
· Perform ComboBox Select Value
- Selects the value for a combo box as per the specified
name.
· Perform ComboBox Select ValueAt
- Selects the value for a combo box as per the specified
index.
· Perform Menu Item Click
- Click the menu item as per the specified main menu and
the sub menu.
· Get RadioButton Status
- Specifies if the radio button is checked or not.
· Get RadioButton Text
- Extracts the text of the radio button.
· Select ListItem - Selects
the list item as per the specified indices.
· Is Exists - Checks if
the UI element exists at the specified area. It returns
a boolean value and is useful when working with dynamics
controls.
· Is Enabled - Checks
if the UI element is enabled. It returns a boolean value.
· Is Visible - Checks
if the UI element is visible. It returns a boolean value.
· Is Focused - Checks
if the UI element is in focus. It returns a boolean value.
· Request Focus - Sets
the UI element into focus.
· Insert JText Comp Text
- Sets the user proved string value into the JText component
as per the specified offset.
· Button Enter - Performs
the return action of the keybaord on the specified UI
element
· GridRowRobotEnter -
Performs the return action of the keyboard.
· CheckBox Click - Clicks
the specified checkbox.
· Perform Click at Offset
- Clicks at the specified X and Y coordinates.
· Set Table Cell Value
- Sets value in a field as per specified row and column
number.
· Select Radio Button
- Selects the desired radio-button element from the given
group.
· Click Checkbox Action
- Checks or un-checks the desired check-box element.
· PopUp
Click - Click the UI element which opens a pop-up
menu.
· Enter Click -
|
Interaction |
The corresponding interaction
set against the selected action. |
Appears
if Action selected
is Set Text, Set Key
event Text, Insert JTextComp Text, Set Table Cell Value,
Select Radio Button |
Text |
Allows user input as a
text. You can select the parameter holding the required
value defined in the Parameter
bar. Alternatively, select the Is
Default Value check box and specify the required
text in the Text
field to set the value as the default value. |
Appears if the Action
selected is
Insert JTextComp Text. |
Offset |
The distance between the
target item and the anchor. |
Appears
if Action selected
is Get Table Cell Value,
Set Table Cell Value. |
Column Number |
The column number that
contains the required cell from the table. |
Row Number |
The row number that contains
the required cell from the table. |
Dock
Window
This section appears only
when Action selected is Dock. |
Dock
Action |
When a link or button
on the web page is opened in a new browser window, the
Dock Action
button enables the new window listed in the multimodal
UI. You can select one of the windows in the multimodal
UI to configure controls on the intended window. |
Appears
if Action selected
is Click, Perform ComboBox Select Value
or Perform ComboBox Select
ValueAt, CheckBox Click |
BlockingCall |
Indicates that the current
thread is blocked until the operation is executed. If
it is not handled it can the application or the system
itself. |
Value |
Allows user input of the
value of the combo box set. You can select the parameter
holding the required value defined in the Parameter
bar. Alternatively, select the Is
Default Value check box and specify the required
value in the Value field
to set the value as the default value. |
Appears
if Action selected
is Perform Menu Item
Click. |
Main
Menu |
The main menu where the
required item needs to be clicked. |
Sub
Menu |
The sub menu where the
required item needs to be clicked. |
Appears if the Action
selected is
Select ListItem. |
ItemIndices |
Index number of the selected
item of the list. |
Appears if the Action
selected is
Perform Click At Offset. |
X Offset |
Vertical offset on the
Java application. The value must be entered in pixels. |
Y Offset |
Horizontal offset on the
Java application. The value must be entered in pixels. |
Appears if the Action
selected is
Click CheckBox Action. |
Field
Properties |
Display Name |
User specified display
name of the action configured. |
Appears
if Action selected
is Get Text, Get Table Cell Value, Get RadioButton
Status. Get RadioButton Text, Get CheckBox Status. Get
CheckBox Text, Is Exists, Is Enabled, Is Visible, Is Focused, |
Is C-View |
Is applicable only for
AssistEdge Engage.
If selected, the field configuration
captured in Automation Studio is visible in the Engage
C-View tab. |
Variable Name |
User defined name of the
variable that stores the captured value. You can define
the variable name here itself or predefine it in the Parameter
bar. |
Variable Type |
Type of the variable defined.
Available options are:
· Text - A sequence of
character, either as a constant or a variable.
· Numeric - An integer
type that range from negative through positive.
· Decimal - An exact numeric
value defined by its precision and scale.
· Boolean - A data type
used for making decision. Can have only two values- true
or false.
· Data Table - A data
type that stores tabular data. |
Java Application Properties
The properties of a web application
are listed in the following table and can be edited in the Properties
grid on the right pane.
Property Name |
Usage |
Control Execution |
Ignore Error |
When this option is set
to Yes, the application
ignores any error while executing the activity.
If set to NA,
it bypasses the exception (if any) to let the automation
flow continue; however, it marks the automation status
as failure, in case of an exception.
By default, this option is
set to No. |
Delay |
Wait After |
Specify the time delay
that must occur after the activity is executed. The value
must be in milliseconds. |
Wait Before |
Specify the time delay
that must occur before the activity is executed. The value
must be in milliseconds. |
Misc |
Breakpoint |
Select this option to
mark this activity as the pause point while debugging
the process. At this point, the process freezes during
execution allowing you to examine if the process
is functioning as expected.
In large or complex processes,
breakpoints help in identifying the error, if
any. |
Commented |
Select this option to
mark this activity as inactive in the entire process. When
an activity is commented, it is ignored during the process
execution. |
DisplayName |
The display name of the
activity in the flowchart designer. By default, the name
is set as the name of the selected application. You can
change the name as required. |
|
