Introduction

Generate Process - Approval Process function will generate a generic approval process flow together with complementing forms and userview menu items into your existing app from a form.

The form intended to be generated from should be an application/request form.

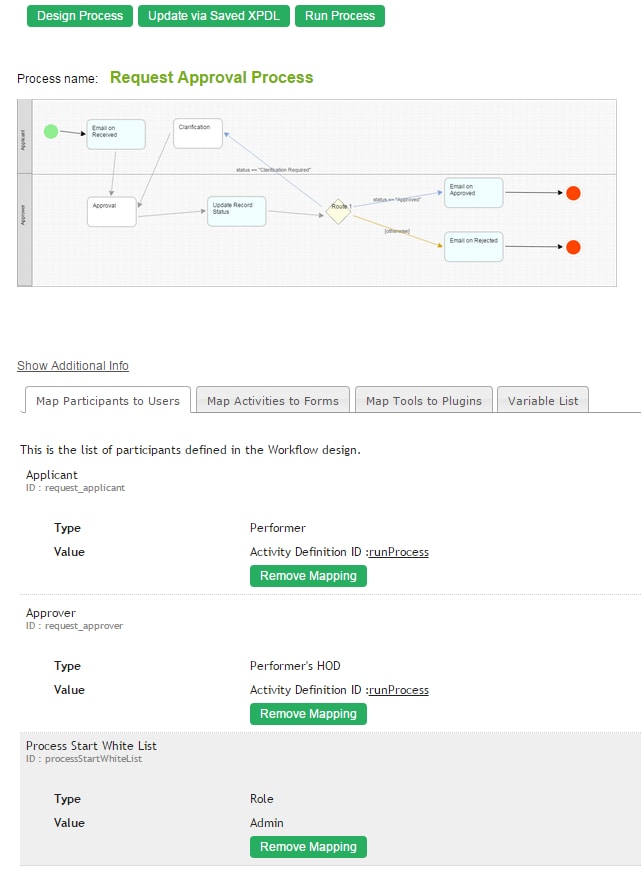

Figure 1: Approval process flow template

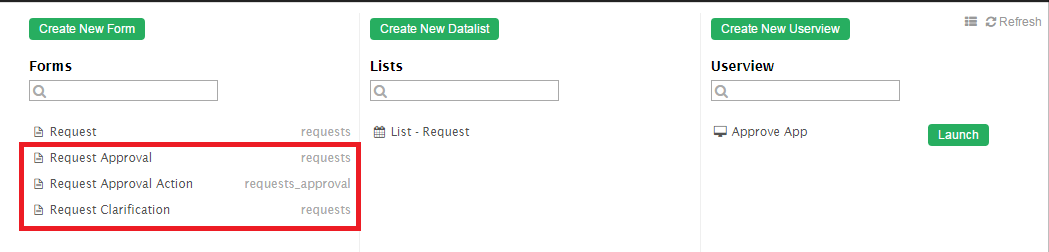

Figure 2: Screenshot highlighting the series of form that is created to complement the process flow

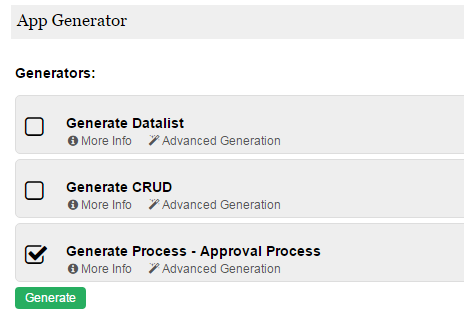

Figure 3: Screenshot showing Generate Process - Approval Process plugin in Generate App function

Generate Process - Approval Process Properties

Options

Name	Description	Screen (Click to view)

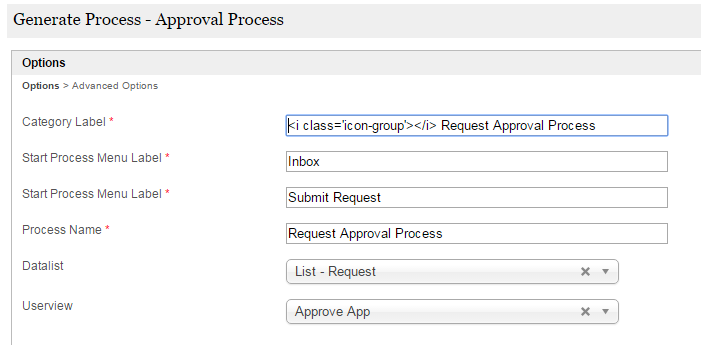

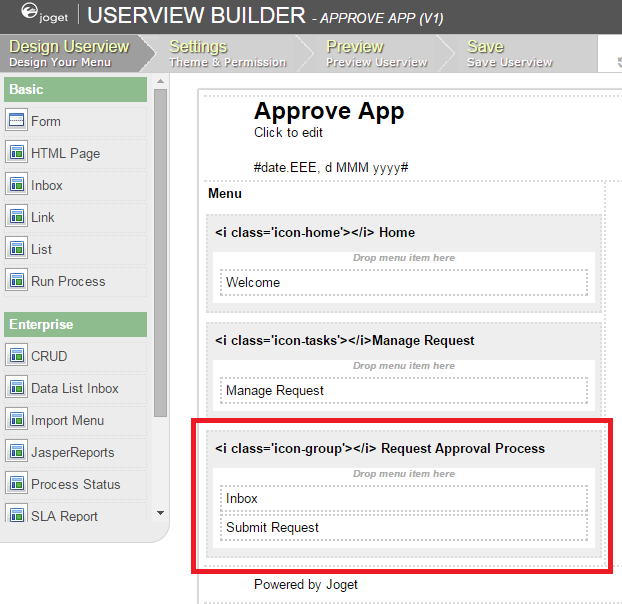

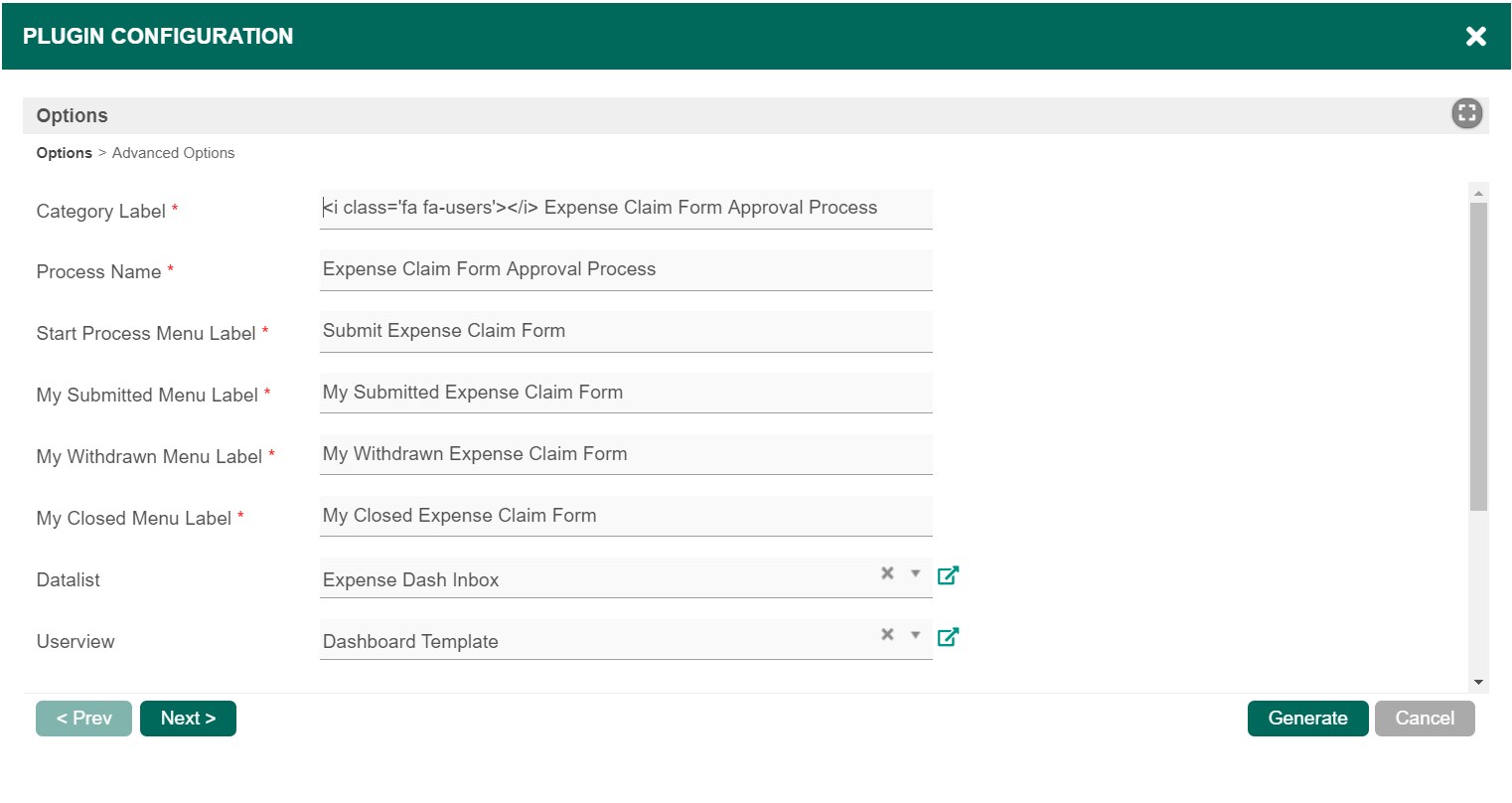

Category Label	Define the category label to be appended into the target Userview below. (see Figure 5)	Figure 4: Options Properties Figure 5: Userview Example
Start Process Menu Label	Define the Process Start menu label to be created under the new category defined in Category Label above.
Process Name	Process Name Label
Datalist	Choose the Datalist to be associated with the Datalist Inbox that will be created in the new Userview category. If this is left empty, Create New Datalist Options will be available in Advanced Options
Userview	Choose the Userview to append the new Userview category into. If this is left empty, Create New Userview Options will be available in Advanced Options

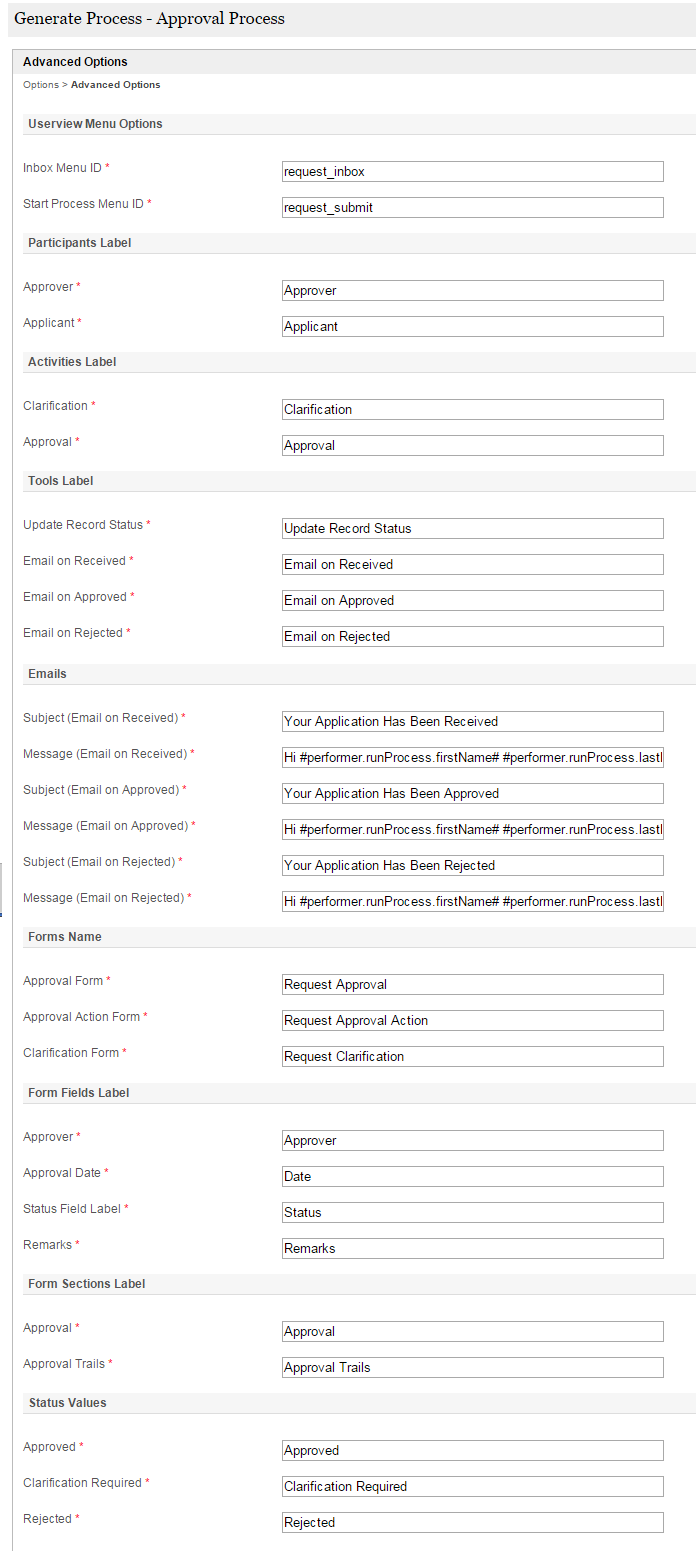

Advanced Options

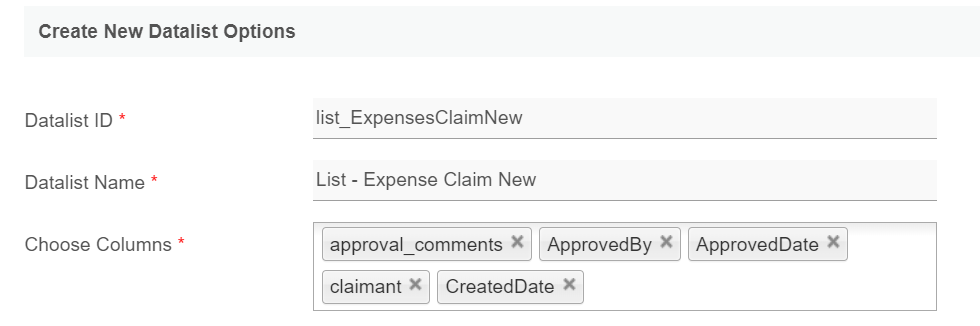

Create New Datalist Options

Name	Description	Screen (Click to view)
Datalist ID	Datalist ID
Datalist Name	Datalist Name
Choose Columns	Select Columns to be displayed in Datalist. AutoComplete enabled. Type column name to display filtered selection.

Create New Userview Options

Name	Screen (Click to view)
Userview ID
Userview Name
Userview Description

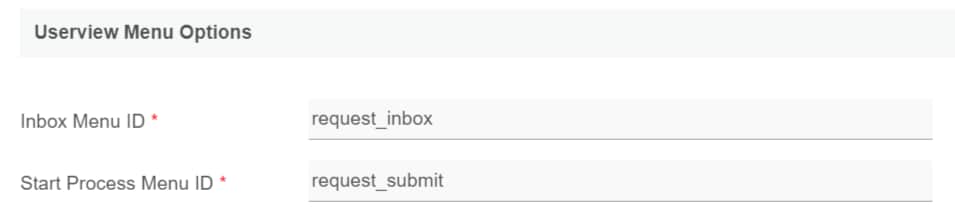

Userview Menu Options

Name	Screen (Click to view)
Inbox Menu ID
Start Process Menu ID

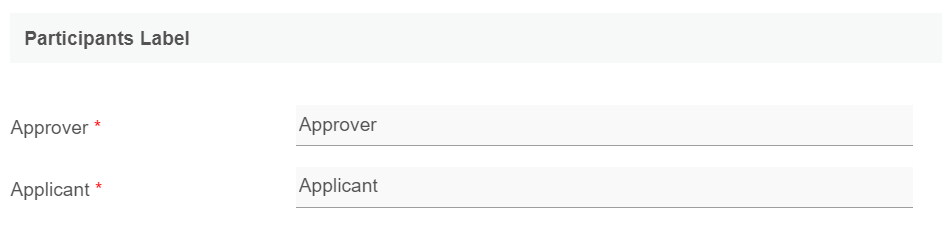

Participants Label

Name	Screen (Click to view)
Approver
Applicant

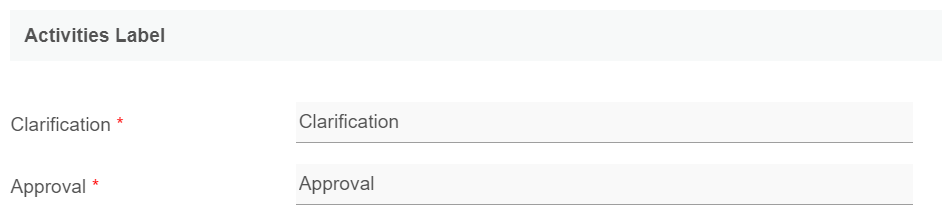

Activities Label

Name	Screen (Click to view)
Clarification
Approval

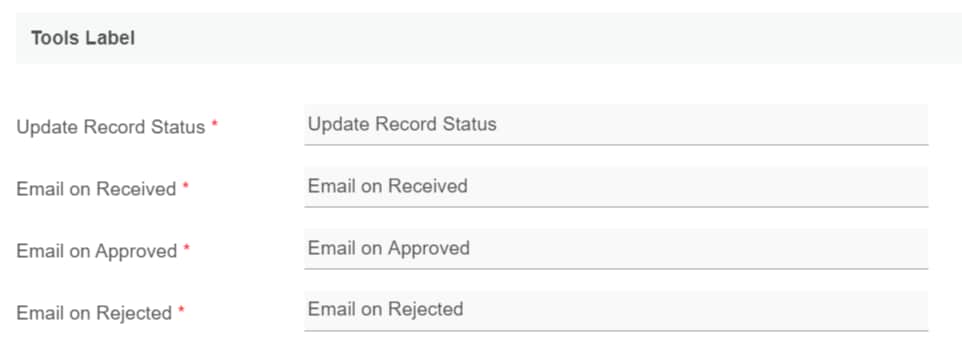

Tools Label

Name	Screen (Click to view)
Update Record Status
Emails on Received
Emails on Approved
Emails on Rejected

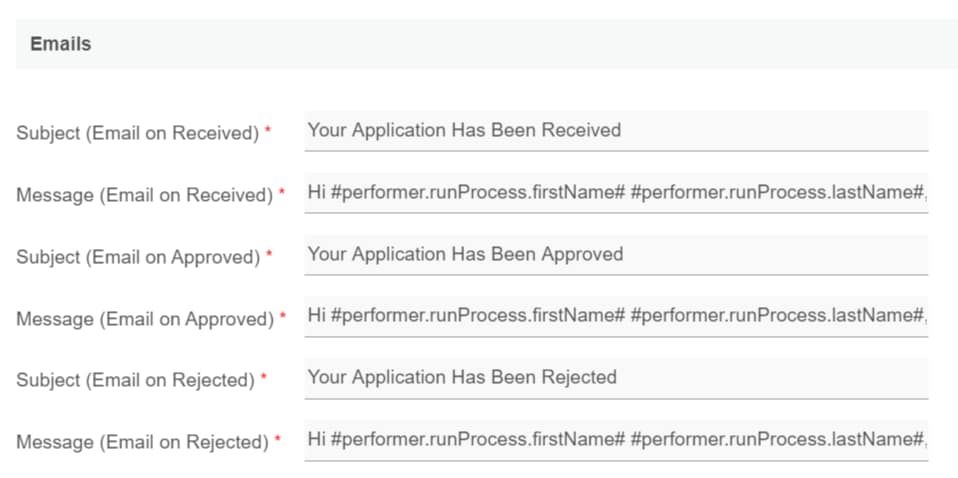

Emails

Name	Screen (Click to view)
Subject (Email on Received)
Message (Email on Received)
Subject (Email on Approved)
Message (Email on Approved)
Subject (Email on Rejected)
Message (Email on Rejected)

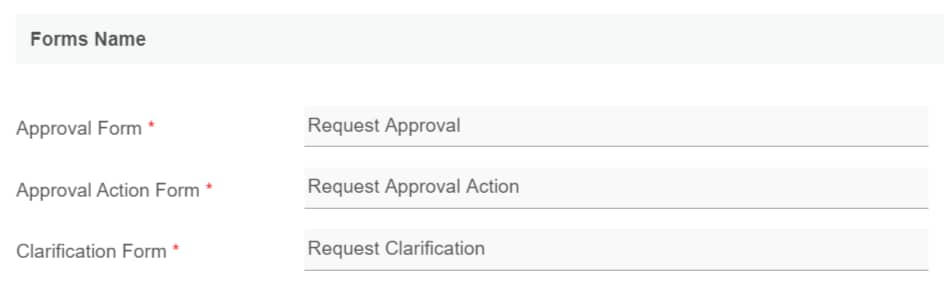

Forms Name

Name	Screen (Click to view)
Approval Form
Approval Action Form
Clarification Form

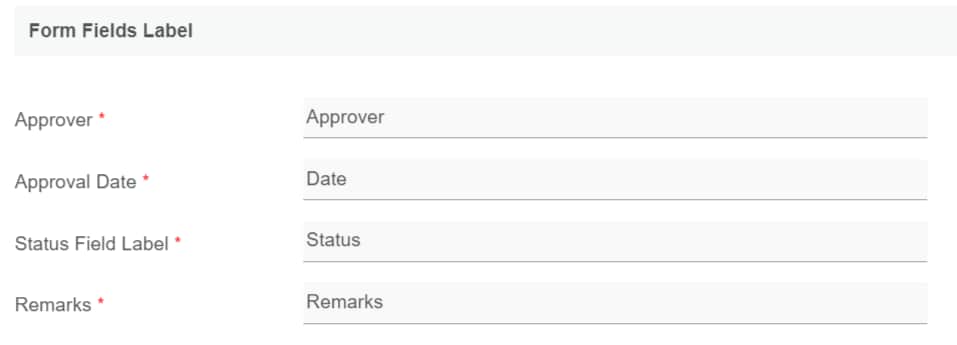

Form Fields Label

Name	Screen (Click to view)
Approver
Approval Date
Status Field Label
Remarks

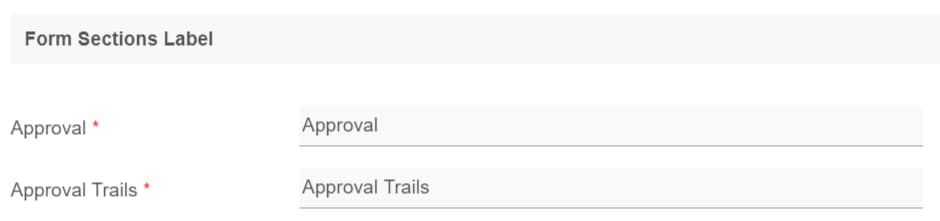

Form Sections Label

Name	Screen (Click to view)
Approval
Approval Trails

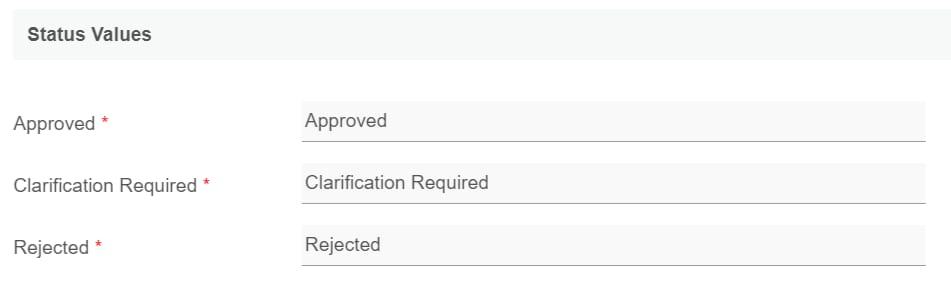

Status Values

Name	Screen (Click to view)
Approved
Clarification Required
Rejected
