Configure CustomApps

Custom Applications are coded automations for the applications for which automation cannot be configured using Automation Studio directly.



Automation Studio allows adding these coded automations (DLLs) that are created by implementing the required product interfaces to be configured as a Custom Application.

The DLL must be built using .NET Framework 4.6 and in x86 mode.



To configure a custom application:

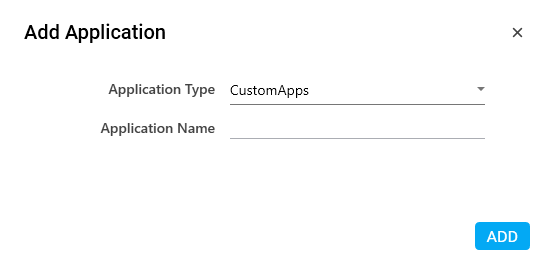

  1. In the Admin menu, click the  (Add Application) icon to add an application. The Add Application dialog box appears.





  1. In the Application Type list, select CustomApps.
  2. In the Application Name field, enter a desired name of the custom application you want to add. The name must not contain any special character or space.
  3. Click ADD. A message for successful addition of the application is displayed.
  4. Close the displayed message and enter the following details in the Application Properties pane. Mandatory fields are highlighted in a red box.



Property Name

Usage

Application Properties

Language

The programming language used to build the custom application. Supported language is DotNet.

DllPath

Path of the DLL file containing the custom code.

Display

Application Description

A small description of the custom application added.

Display Name

The desired name of the custom application, entered by the user.  This is a mandatory field.

General

Application Type

Type of application selected at the time of adding the application. It auto populates as per the application type selected while configuring the application.

Misc

Automation

Signifies the type of automation performed in the configured custom application.

Reset

Is Reset Required

Signifies if the application reset needs to be done after each automation is executed. If it is not selected, the application does not reset.

Is Sequential Reset

Signifies if the application reset is done one after other in no particular order. If selected, it is mandatory to raise the launch, sign in and reset status event from the custom application code.

Sequential Launch/SignIn

Is Sequential SignIn

Signifies if the application is signed in one after the other in no particular order. If selected, it is mandatory to raise the launch, sign in and reset status events from the custom application code.





























































  1. Click the (Save Properties) icon to save the application.

The custom application is configured
