Uploading OpenSearch-Dashboard Reports

OpenSearch-Dashboard offers data visualization and generation of reports regarding the transactions that occur within AssistEdge. You can view details about the robots, the user and other such details in the form of a report using OpenSearch-Dashboard.



NOTE:
  • You must have reporting access to be able to view the dashboard.
  • Ensure the Reporting components should be in the STARTED state.



  • The Out-Of-Box (OOB) OpenSearch Reporting Dashboards for RPA and EPA are uploaded using files which are part of the installation build. These files are located at the below locations:
    • RPA: <Installation Directory>/AssistEdgeAutomation > data > ReportDashboard> Unattended folder.
    • EPA: <Installation Directory>/AssistEdgeAutomation > data > ReportDashboard> EnterprisePersonal Assistant folder.
  • You can also upload the Compatibility Report to check the compatibility of the applications. The Compatibility of the applications is used by client-side components on the systems that automatically generate data to be displayed in Compatibility Report. The Compatibility Report is uploaded using the file located at <Installation Directory>/AssistEdgeAutomation > data > ReportDashboard> Generic folder.


Follow below steps as per your requirement:



Upload OpenSearch-Dashboard Reports for RPA

Use the command prompt to upload OpenSearch-Dashboard reports for RPA:

  1. Open command prompt with the administrator rights and change the directory to <Installation Directory>/AssistEdgeAutomation > scripts folder.
  2. Run ae uploadreports Unattended to upload the OOB OpenSearch Reporting Dashboards.

    D:\RPA\AssistEdgeAutomation\scripts>ae uploadreports Unattended
    [2023-04-20T08:28:46.019Z] [INFO ] [aeServer\uploadKibanaReports\uploadKibanaReports] 'Executing command ae uploadreports Unattended'
    [2023-04-20T08:28:46.111Z] [INFO ] [handler\txnstore\index] 'Connected to Elastic, HTTP status code: 200'
    [2023-04-20T08:28:46.815Z] [INFO ] [aeServer\uploadKibanaReports\uploadKibanaReports] 'Kibana ndjson file successfully uploaded'
    D:\RPA\AssistEdgeAutomation\scripts>

    The OOB Dashboards for RPA starts appearing in the Reporting portal. To view the uploaded Dashboard, see the View Uploaded OpenSearch-Dashboards.



Upload OpenSearch-Dashboard Reports for EPA

Use the command prompt to upload OpenSearch-Dashboard reports for EPA:

  1. Open command prompt with the administrator rights and change the directory to <Installation Directory>/AssistEdgeAutomation > scripts folder.
  2. Run ae uploadreports EnterprisePersonalAssistant to upload the OOB OpenSearch Reporting Dashboards.

    D:\RPA\AssistEdgeAutomation\scripts>ae uploadreports EnterprisePersonalAssistant
    [2023-04-20T09:37:56.312Z] [INFO ] [aeServer\uploadKibanaReports\uploadKibanaReports] 'Executing command ae uploadreports EnterprisePersonalAssistant'
    [2023-04-20T09:37:56.377Z] [INFO ] [handler\txnstore\index] 'Connected to Elastic, HTTP status code: 200'
    [2023-04-20T09:37:57.400Z] [INFO ] [aeServer\uploadKibanaReports\uploadKibanaReports] 'Kibana ndjson file successfully uploaded'



    D:\RPA\AssistEdgeAutomation\scripts>

    The OOB Dashboards for EPA starts appearing in the Reporting portal. To view the uploaded Dashboard, see the View Uploaded OpenSearch-Dashboards.

 
Upload Compatibility Report

Use the command prompt to upload compatibility reports:

  1. Open command prompt with the administrator rights and change the directory to <Installation Directory>/AssistEdgeAutomation > scripts folder.
  2. Run ae uploadreports Generic to upload the OOB OpenSearch Reporting Dashboards.

    D:\RPA\AssistEdgeAutomation\scripts>ae uploadreports Generic
    [2023-05-04T05:18:22.671Z] [INFO ] [aeServer\uploadKibanaReports\uploadKibanaReports] 'Executing command ae uploadreports Generic'
    [2023-05-04T05:18:22.746Z] [INFO ] [handler\txnstore\index] 'Connected to Elastic, HTTP status code: 200'
    [2023-05-04T05:18:23.214Z] [INFO ] [aeServer\uploadKibanaReports\uploadKibanaReports] 'Kibana ndjson file successfully uploaded'


    D:\RPA\AssistEdgeAutomation\scripts>

    The OOB Dashboards for Generic starts appearing in the Reporting portal. To view the uploaded Dashboard, see the View Uploaded OpenSearch-Dashboards.



View Uploaded OpenSearch-Dashboards

  1. Access Admin Module and Login. For more information on how to Login into the admin module, see the Logging into the Admin Module section in AE-RPA Administrator Guide.pdf.

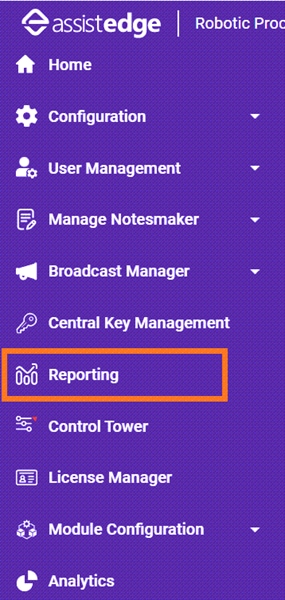

  2. In the left navigation pane, click Reporting.


    The Reporting dashboard window opens.

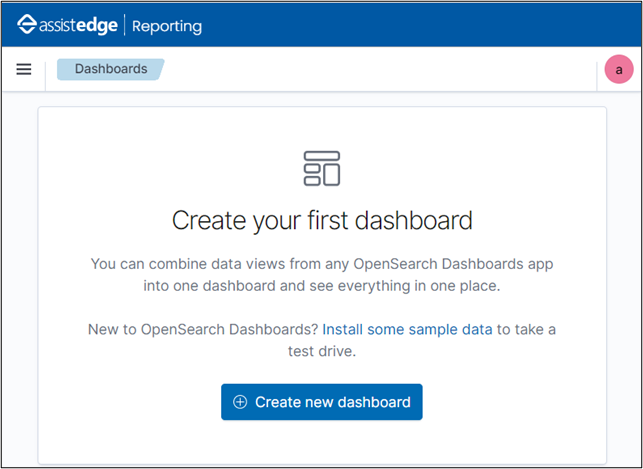

    Following is the sample screenshot before uploading the OOB Reporting Dashboard.


    Once the OOB Reporting Dashboards are uploaded, the Dashboard page gets updated. To know how to upload the OOB Reporting Dashboard refer the Uploading OpenSearch-Dashboard Reports section.
    Following are the different types of OOB OpenSearch Reporting Dashboards:

RPA:

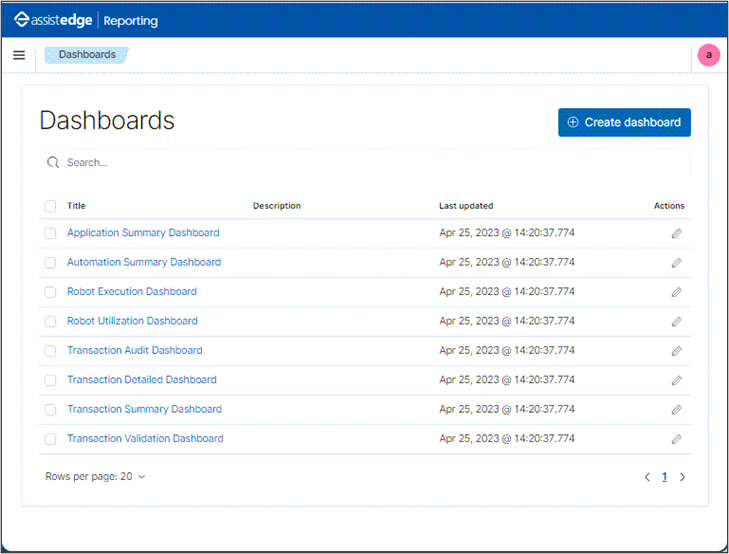

Following is the sample screenshot after uploading the OOB OpenSearch Reporting Dashboards for RPA.





EPA:

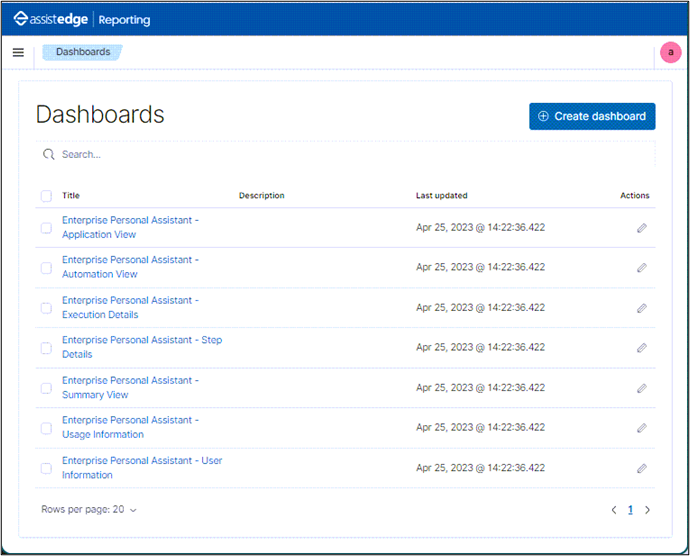

Following is the sample screenshot after uploading the OOB OpenSearch Reporting Dashboards for EPA.





Generic:

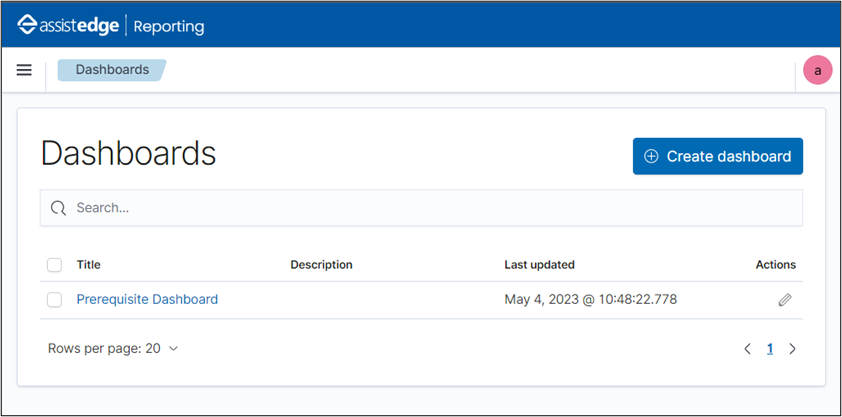

Following is the sample screenshot after uploading the OOB OpenSearch Reporting Dashboards for Compatibility Reports.
