Post Install Setups

After successful installation of server-side components, few optional configurations can be done as per the need. You also need to start the server-side components for them to run.




Below section guides you to the advanced configuration of AssistEdge such as Key and Salt configuration and updating the runtime properties. It also walks you through the process to start the components.


Advanced Configuration for Key and Salt

For AssistEdge setup, there is a provision to customize the source for salt and key used for encryption of the application credentials.


By default, Key-Salt combination for AssistEdge setup is retrieved from the database. This can be extended to a JSON file or Custom JS file API call.


If you wish to change the default settings for Key and Salt, configure it immediately after installation of server-side components. The Key and Salt set up is used for application credential encryption for AssistEdge. Perform the configuration before you start the server-side components.



CAUTION:

If you want to change the default values, you must make the required changes before starting the server side components. Once the server-side components are started the source for Key and Salt configuration i.e., Database, JSON file, custom JS file API call cannot be changed.



NOTE:
  • See Customization to know how to create the FILE/Custom JS API for Key-Salt combination.
  • If the chosen source is a JSON File or a Custom JS API, deleting or removing the JSON file/Custom JS file from the path post deployment may lead to system failure.



Update Runtime Properties

Following files must be updated to update the runtime properties of the components:



Update ae.properties File

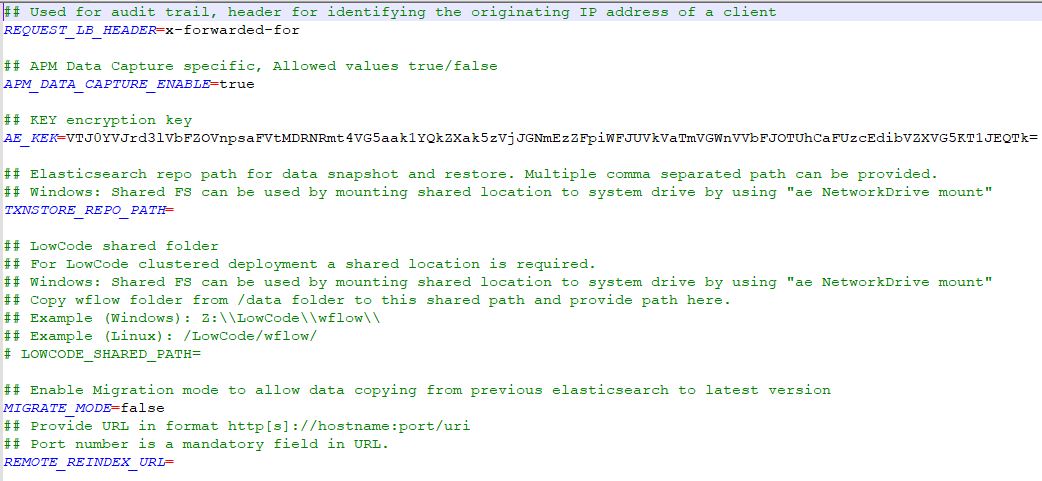

The run time properties of components are defined in the ae.properties file. The values contained in this file can we overwritten to change the default settings.


To update the ae.properties file:

  1. Access <Installation Directory>/AssistEdgeAutomation > scripts folder.
  2. Locate the ae.properties file and edit the below mentioned properties.





  1. Update the below properties to change the default values:



Name of Property     Description
REQUEST_LB_HEADER Used for audit trail. It is the header for identifying the originating IP address of a client.
APM_DATA_CAPTURE_ENABLE Signifies if APM data capture is allowed.
Default value is set to true. Enter false to disable it.
AE_KEK

Signifies the decryption key of the Key and Salt. You can change the value of the key using the ae updatekek command from the scripts folder of the product package. For more information, see AE Commands.
TXNSTORE_REPO_PATH Signifies the data backup/ restoration path of TxnStore.
MIGRATE_MODE Signifies that the current installation is in migration mode. For details refer Migration.
Default value is set to false.
REMOTE_REINDEX_URL Signifies the URL for old ElasticSearch deployment. For details refer  Migration.



The installation of AssistEdge is completed.


NOTE:

The default authentication of AssistEdge is set to Windows > Lightweight Directory Access Protocol (LDAP). However, you can change the default authentication setting to either Custom or SAML/OIDC Authentication.



Update ae-profile-default.properties File

The default server settings that will be used during start-up of the AE components is mentioned in the ae-profile-default.properties file. You can update the values as per user workload.


To update the ae-profile-default.properties file:

  1. Access AssistEdgeAutomation > scripts folder.
  2. Locate the ae-profile-default.properties file and edit the below mentioned properties.





Name of Property   Description
START_COMPONENTS Signifies the list of components that must be started when the ae sartall command is executed.
MAX_NODE_PROCESS

Signifies the maximum child Node JS processes for Proxy and ControlTower. Default value is number of CPU cores. If you are facing high CPU or RAM utilization then, based on your environment you can configure to a small number less than CPU Cores.

Default value is set to 2.
ES_MEMORY Signifies the memory space allocated to OpenSearch in the RAM. The unit for RAM memory is in Giga Byte (GB).
Default value is set to 2.
LC_MEMORY Signifies the memory space allocated to LowCode in the RAM. The unit for RAM memory is in Giga Byte (GB).
Default value is set to 1.
LS_MEMORY Signifies the memory space allocated to Logstash in the RAM. The unit for RAM memory is in Giga Byte (GB).
Default value is set to 1.
LS_WORKER_COUNT The number of workers that will, in parallel, execute the filter and output stages Logstash. If you find that events are backing up, or that the CPU is not saturated, consider increasing this number to better utilize machine processing power.
Default value is set to 0.
LS_BATCH_SIZE The maximum number of events an individual worker thread will collect from inputs before attempting to execute its filters and outputs. Larger batch sizes are generally more efficient, but come at the cost of increased memory overhead.
Default value is set to 250.
LS_BATCH_DELAY When creating pipeline event batches, how long in milliseconds to wait for each event before dispatching an undersized batch to pipeline workers.
Default value is set to 500.
LOG_LEVEL Signifies the log level for Open Distro, RabbitMQ and Logstash.
Default value is set to INFO.
MAX_LOG_SIZE Signifies maximum size of the log file for log rotation. The unit for the log size is MB.
Default value is set to 100.
MAX_LOG_FILE Signifies the maximum number of log files for log rotation.
Default value is set to 10.



NOTE:

An additional profile called ae-profile-dev.properties is available at <Installation Directory>/AssistEdgeAutomation > scripts folder. This profile can be used for development, POC or small-scale deployments.



Authentication Details

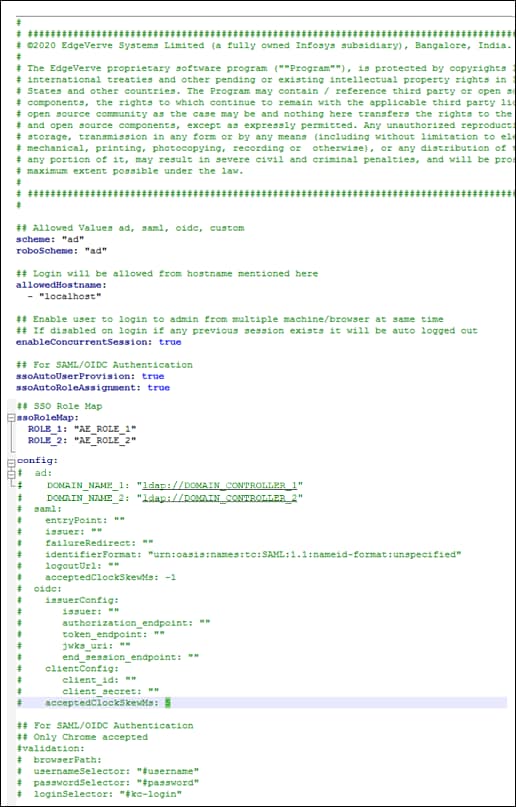

The authentication details related to the user are defined in the auth.yml file. The values contained in this file can we overwritten to change the default settings.


To update the auth.yml file:

  1. Access <Installation Directory>/AssistEdgeAutomation > scripts folder.
  2. Locate the auth.yml file and edit the below mentioned properties.




  1. Update the below properties to change the default values:



Name of Property     Description
Scheme The mode to authenticate the user. Available options are:
  •  AD
  • SAML
  • OIDC
  • Custom
roboScheme The mode to authenticate the robots. Available options are:
  •  AD
  • SAML
  • OIDC
  • Custom
allowedHostname The list of hostnames through which the AE instance can be accessed.
enableConcurrentSession Signifies if logging into multiple instances is permitted. By default, it is set to true.
ssoAutoRoleAssignment

This property is applicable only for SAML and OIDC.

If this is enabled, the created new user gets a role automatically assigned.
ssoRoleMap

This property is applicable only for SAML and OIDC.

If the ssoAutoRoleAssignment property is enabled, the sso (SAML/OIDC)  role gets mapped with the specified  AE role.
config Specify the configuration details of the scheme specified above.



Multi-Domain Setup

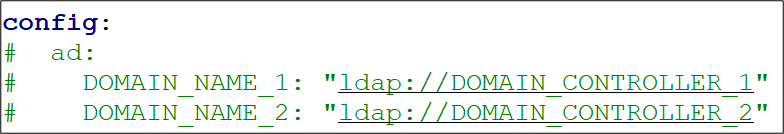

If your organization has multi-domain, and you want to allow users from all the domain to login to AE then you must provide the domain name and domain controller value in the auth.yml file present at the <Installation Directory>\AssistEdgeAutomation\scripts folder.





Uncomment the above commented lines and provide the domain name and domain controller details.

For example, if you have two domain names, DN1 and DN2 and their domain controller details are ldap://ldapserverdn1 and ldap://ldapserverdn2, respectively, then it needs to be provided as:

  • DN1: "ldap://ldapserverdn1"
  • DN2: "ldap://ldapserverdn2"

Once multiple domains are configured then during login, provide username in the format- domain name\user name. In case domain name is not provided then the user is authenticated against the domain provided during installation.
To access the Automation Studio and Enterprise Personal Assistant, update their respective config files and set the customauthentication as true.

SSL Certification Details

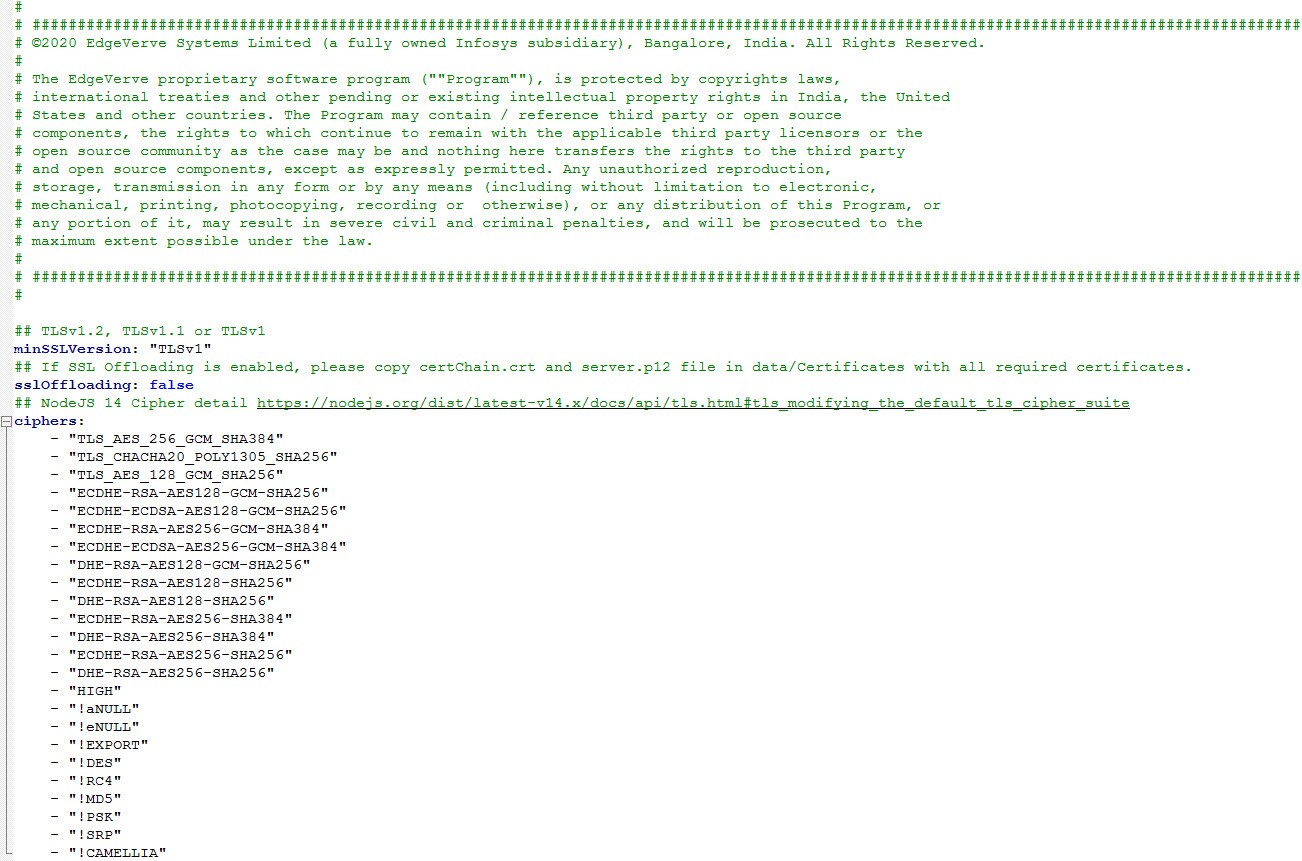

The SSL certification related details are defined in the ssl.yml file. The values contained in this file can we overwritten to change the default settings.


To update the ssl.yml file:

  1. Access <Installation Directory>/AssistEdgeAutomation > scripts folder.
  2. Locate the ssl.yml file and edit the below mentioned properties.





Name of Property     Description
minSSLVersion Signifies the TLS protocol version supported by AE servers i.e. 8443. It is recommended to set the lowest version available that in turn ensures all the higher version are available.
Default value is set to ‘TLSv1’.
Possible values are:
  • TSLv1.2
  • TLSv1.1
  • TLSv1
sslOffloading

If you want to do ssl offloading at load balancer enable this by setting to true.

By default, it is set to false.

NOTE:

 If the ssloffloading is set to true, you must place the certChain.crt and server.p12 file in the AssistEdgeAutomation > data > Certificate folder; else, the offloading mechanism fails.
ciphers The set of algorithms used to secure the connection.



Setting-Up Lowcode in Cluster Deployment

To setup LowCode in cluster deployment, make sure to enable the multicast.



After the installation for the cluster setup is completed follow the below mentioned steps on all the machines where the installation is done:

  1. Mount network drives:
  • For Windows: Run ae networkdrive mount command. Enter below required inputs:
    • Enter Drive Letter: <Mount drive letter>. Make sure that the drive letter is same on all the machines.
    • Enter Network Location: <Shared network drive path>
    • Enter Username: <Shared network username>
    • Enter Password: <Shared network password>
  • For Linux: Mount a shared drive at a common location on all servers in the cluster. The assistEdge group created above must have access to this drive. See Mounting Shared Drive section to know how to mount the shared drive in Linux.
  • Make sure that the mounted network drive folder has read/write permissions.
  1. Update ae.properties file:
    1. Copy the \data\wflow folder to the shared file directory.
    2. If the mapped drive is Z: add the below setting in the ae.properties file located in <Installation Directory>/AssistEdgeAutomation > scripts directory. For example, LOWCODE_SHARED_PATH=Z:\\wflow
  2. Access the server.xml file located at <Installation Directory>/AssistEdgeAutomation > runtime > tomcat > apache-tomcat-<version> > conf folder.
  3. Uncomment the below mentioned tag and update as described below :
    <Engine name="Catalina" defaultHost="localhost" jvmRoute="jvm1">
    Replace the entry of the jvmRoute with the hostname of the respective machine.

  4. Uncomment the cluster tag given below.

    <Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"
                     channelSendOptions="6">

              <Manager className="org.apache.catalina.ha.session.BackupManager"
                       expireSessionsOnShutdown="false"
                       notifyListenersOnReplication="true"
                       mapSendOptions="6"/>
              <!--
              <Manager className="org.apache.catalina.ha.session.DeltaManager"
                       expireSessionsOnShutdown="false"
                       notifyListenersOnReplication="true"/>
              -->
              <Channel className="org.apache.catalina.tribes.group.GroupChannel">
                <Membership className="org.apache.catalina.tribes.membership.McastService"
                            address="228.0.0.4"
                            port="45564"
                            frequency="500"
                            dropTime="3000"/>
                <Receiver className="org.apache.catalina.tribes.transport.nio.NioReceiver"
                          address="auto"
                          port="5000"
                          selectorTimeout="100"
                          maxThreads="6"/>

                <Sender className="org.apache.catalina.tribes.transport.ReplicationTransmitter">
                  <Transport className="org.apache.catalina.tribes.transport.nio.PooledParallelSender"/>
                </Sender>
                <Interceptor className="org.apache.catalina.tribes.group.interceptors.TcpFailureDetector"/>
                <Interceptor className="org.apache.catalina.tribes.group.interceptors.MessageDispatchInterceptor"/>
                <Interceptor className="org.apache.catalina.tribes.group.interceptors.ThroughputInterceptor"/>
              </Channel>

              <Valve className="org.apache.catalina.ha.tcp.ReplicationValve"
                     filter=".*\.gif|.*\.js|.*\.jpeg|.*\.jpg|.*\.png|.*\.htm|.*\.html|.*\.css|.*\.txt"/>

              <Deployer className="org.apache.catalina.ha.deploy.FarmWarDeployer"
                        tempDir="/tmp/war-temp/"
                        deployDir="/tmp/war-deploy/"
                        watchDir="/tmp/war-listen/"
                        watchEnabled="false"/>

              <ClusterListener className="org.apache.catalina.ha.session.ClusterSessionListener"/>
            </Cluster>


    For more information related to tomcat cluster settings refer https://tomcat.apache.org/tomcat-9.0-doc/cluster-howto.html.

  5. Repeat step 1 through step 4 on all the machines where the installation is done for the cluster setup.

Start Server-Side Components

After installation, you also need to start all the components to perform the commands in the command-prompt refer AE Commands.


To Start the Components:

  1. Run the ae start <component name> command:
    • For Windows: Run the command with Administrator rights and start all the components in below order.
    • For Linux: No special privilege is required.
  2. Alternatively, run ae startall  to start all the components at once.



NOTE:
  • Choose to start components as per your need.
  • Run ae stop <component name> to stop the component. See AE Commands to know about different commands.



3.    Run ae statusall  to check the status of all the components.



PID: 3900
Started On: 2021-09-30T12:34:28.188Z



MESSAGING                      :STARTED   2021-09-30T12:36:49.372Z
CONTROLTOWER         :STARTED   2021-09-30T12:37:36.295Z
VANGUARD                       :STARTED   2021-09-30T12:37:42.644Z
TXNSTORE                         :STARTED   2021-09-30T12:35:14.940Z
ML                                            :STARTED   2021-09-30T12:37:41.728Z
LOWCODE                         :STARTED   2021-09-30T12:37:38.822Z



REPORTING                      :STARTING
ETL                                           :STARTING



NOTE:

Sometimes a component takes longer time than usual to start. Before you start the next component, wait until the current component starts successfully.



The current status of each of the component is displayed. Below are the various statuses of the components:

  • STARTED- signifies that the component has started
  • STARTING- signifies that the component is still in the starting phase
  • STOPPED- signifies that the component has stopped
  • STOPPING- signifies that the component ha is still in the stopping phase
  • PreCheck: Signifies that the component is waiting for another component to start on which it is dependent. For example, CONTROLTOWER is dependent on MESSAGING and TXNSTORE to start. So, until the MESSAGING AND TXNSTORE components are not started, CONTROLTOWER will show pre-check pending
  • Not installed on this System- signifies that the stated component is not install on your system

Server-Side Component URLs

  • ControlTower – The Control Tower component is accessible using the URL,  https://<proxy_server_hostname>:8443/ui/Admin
  • Reporting –  The Reporting component is accessible using the URL,  https:// <proxy_server_hostname>:8443/reports
  • TxnStore -  The TxnStore component is accessible using the URL,  https:// <proxy_server_hostname>:8443/ts-api. If you are already logged in to AE, no further authentication is required. If you are trying to call the TxnStore API from a code/utility, then you can pass AE user credentials in the Basic Authentication format.
    If you are already logged in to AE, no further authentication is required. If you are trying to call the TxnStore API from a code/utility, then you can pass AE user credentials in the Basic Authentication format. https://<proxy_server_hostname>:8443/ts endpoint does not accept AE user credentials. If you want to access this endpoint, you need to create a TxnStore local user. For TxnStore local user creation, see AE Commands.
  • https://<proxy_server_hostname>:8443/ts endpoint does not accept AE user credentials. If you want to access this endpoint, you need to create a TxnStore local user. For TxnStore local user creation, refer https://opendistro.github.io/for-elasticsearch-docs/docs/security/configuration/yaml/#internal_usersyml.
  • Messaging - The Messaging component is accessible using the URL, https:// <proxy_server_hostname>:8443/messaging-sso. If you are already logged in to AE, no authentication is required. If you are not logged in to AE, you are re-directed to the AE login page.
    https:// <proxy_server_hostname>:8443/messaging endpoint does not accept AE user credentials. If you want to access this endpoint, you need to create a Messaging local user using command, ae rabbitmq. For more information, see AE Commands.
