Microbots

Microbots are used to write code for reusable components. This is a feature to extend the product boundary by creating reusable components which can be inserted anywhere in a process to perform a custom logic.



To create a Microbot:

  1. In Visual Studio, create a new project with output type as Class Library using .net framework 4.8.
  2. Add SE.Core.Automation.Interfaces DLL and SE.Core.Automation.Models DLL references in the project.

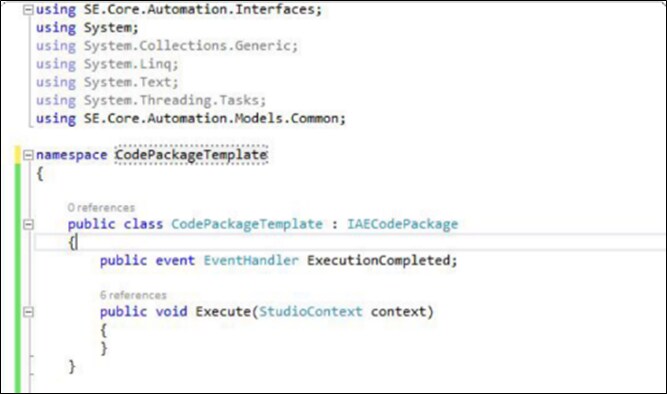

  3. Implement IAECodePackage using SE.Core.Automation.Interfaces.
  4. Execute method and Execution completed event is fetched on implementing the IAECodePackage.

  5. Map input and output parameters: To set or get values from output and input of microbot, use the defined custom attributes set on the .Net class properties.

  6. Once execution is complete, an execution complete event is raised.

NOTE:

Each microbot must have a distinct main DLL.
