Appendix

This page elaborates the appendix for the BAPI Activity Guide.

Appendix-I

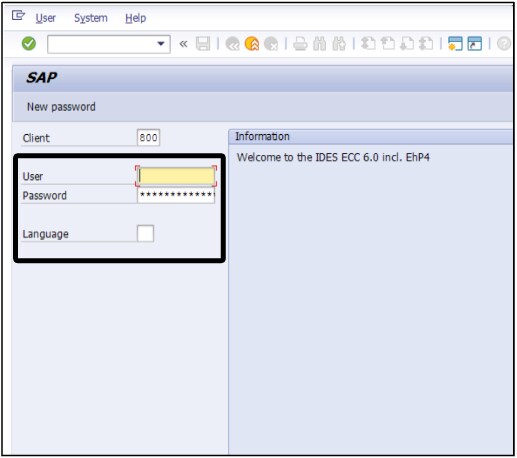

SAP Login Screen

Enter User, Password, Client and Language.

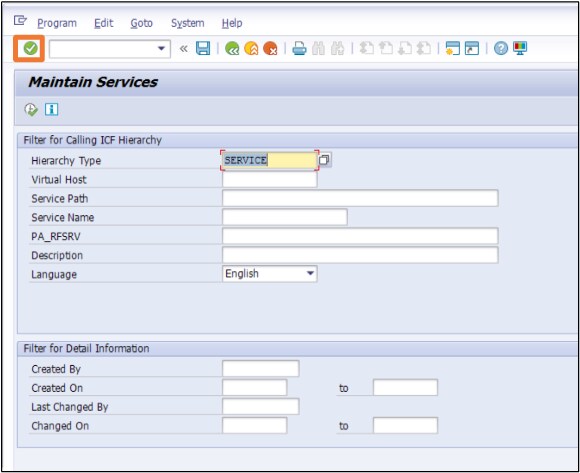

Click on execute (green tick) or press the F8 key.

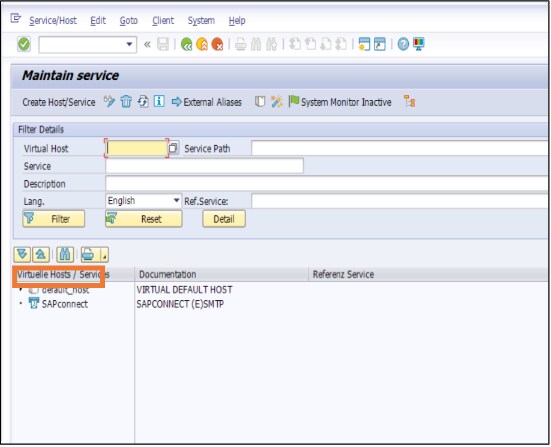

Expand the Virtual Hosts / Services nodes to view the SAP HTTP Server - BAPI URL.





Right click on Leaf node and click on Test Service from the pop-up menu to view the URL. Sap > bc > soap > rfc

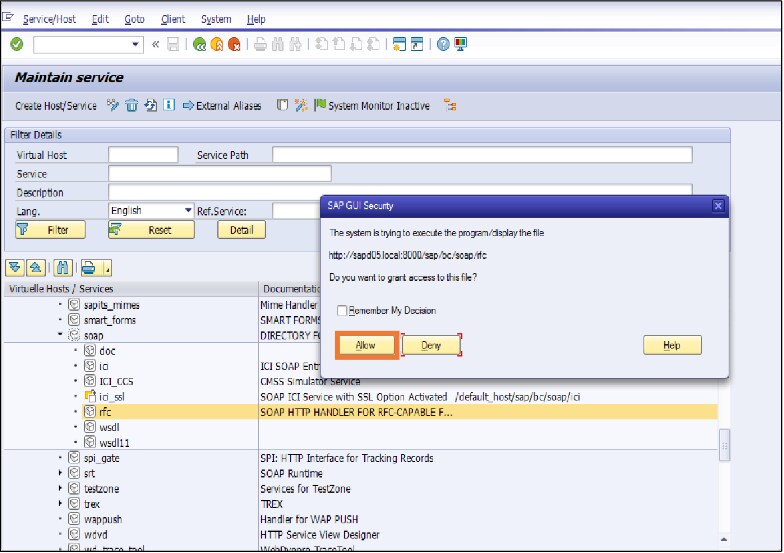

Click on Allow to open the URL in a browser.



Appendix - II

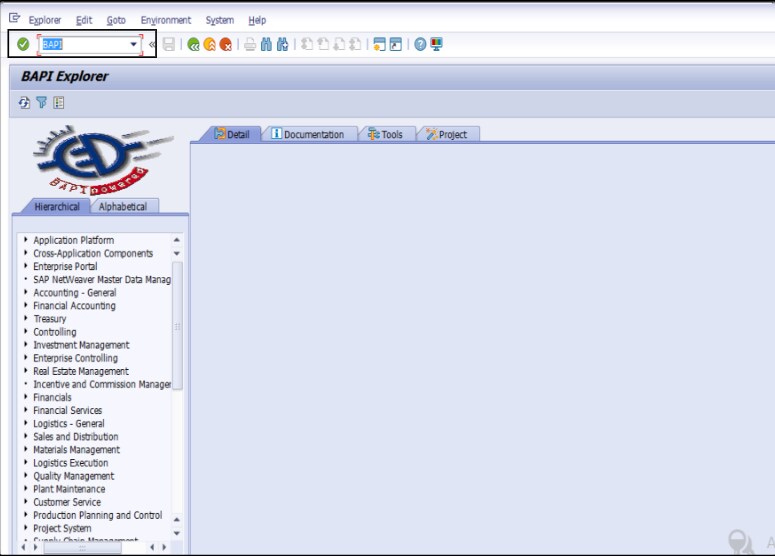

Enter BAPI as the Transaction Code.

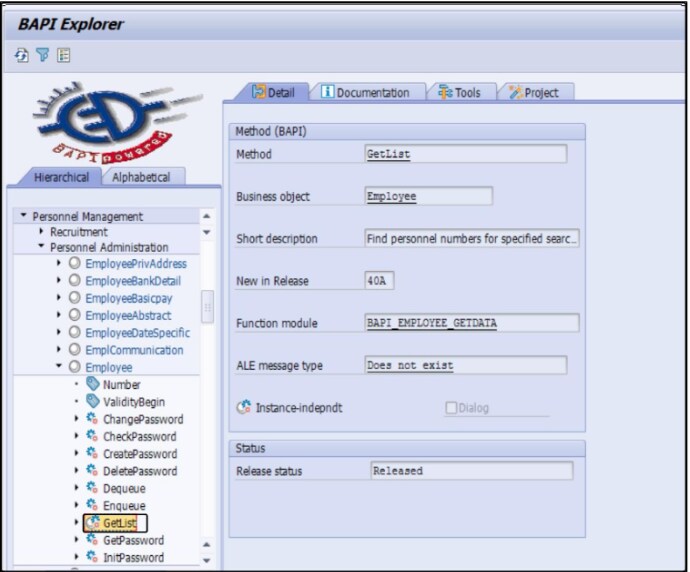

The Hierarchical tab is used to browse to the required BAPI. For example, to retrieve the personal information of an employee, navigate to Personal Management -> Personal Administration -> Employee -> GetList.

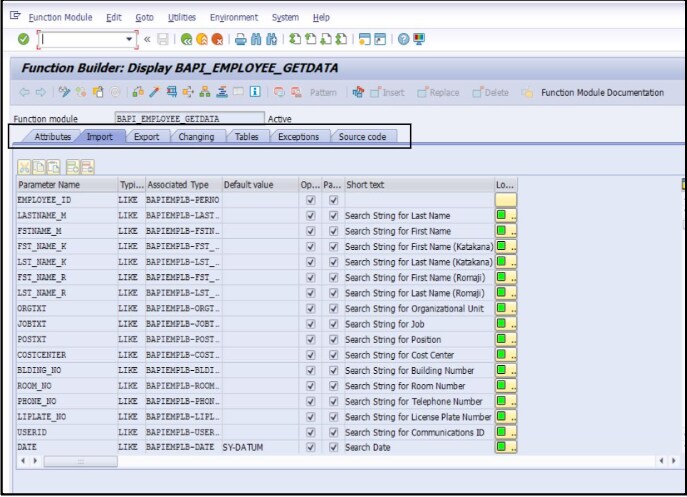

Double-clicking the Function module opens its definition including field level details such as, data types in the Import (Input), Tables (Input & Output) and Export (Output) tabs.







Appendix - III

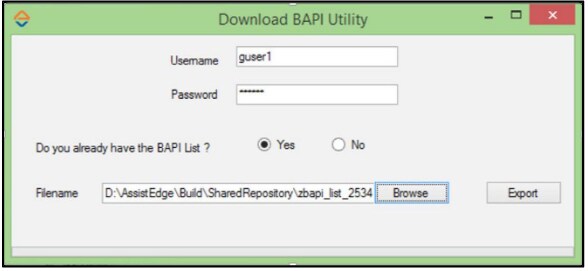

Below is the screen shot for download BAPI Utility:

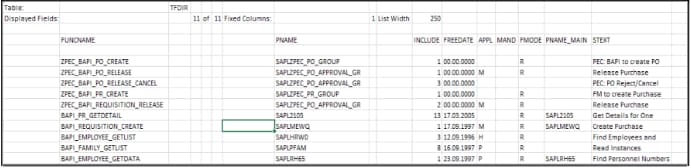

The following is a screen shot of a sample EXCEL file that can be uploaded. The column Function Name (FUNCNAME) is mandatory, whereas the other columns are optional.

Appendix - IV

The Filter field supports wildcards such as “*”. Click on Export to download all the BAPI names starting with the word “BAPI” in  the connected SAP instance.



Scripting/recording needs to be enabled for this part.



Appendix - V

Sample DML

SET IDENTITY_INSERT [usch_aese].[ExternalAPIData] ON

INSERT [usch_aese].[ExternalAPIData] ([INSTANCE_ID], [ID], [NAME], [DESCRIPTION], [REQUESTXML], [REQUESTXSLT], [RESPONSEXML], [RESPONSEXSLT], [TARGET_TYPE], [INSBY], [INSDT], [UPDTBY], [UPDTDT]) VALUES (0, 1, N'BAPI_PR_GETDETAIL', N'Get Details for One MEREQ Object', N'<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Header /><SOAP-ENV:Body><RFCDEMO:BAPI_PR_GETDETAIL xmlns:RFCDEMO="urn:sap-com:document:sap:rfc:functions"><ACCOUNT_ASSIGNMENT /><DELIVERY_ADDRESS /><HEADER_TEXT /><ITEM_TEXT /><NUMBER>$$Y$$</NUMBER><SC_COMPONENTS /><SERIAL_NUMBERS /><SERVICES /><VERSION /><ALLVERSIONS /><EXTENSIONOUT /><PRACCOUNT /><PRADDRDELIVERY /><PRCOMPONENTS /><PRHEADERTEXT /><PRITEM /><PRITEMTEXT /><RETURN /><SERIALNUMBERS /><SERVICEACCOUNT /><SERVICECONTRACTLIMITS /><SERVICELIMIT /><SERVICELINES /><SERVICELONGTEXTS /><SERVICEOUTLINE /></RFCDEMO:BAPI_PR_GETDETAIL></SOAP-ENV:Body></SOAP-ENV:Envelope>', N'<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:msxsl="urn:schemas-microsoft-com:xslt" version="1.0" exclude-result-prefixes="msxsl"><xsl:output method="xml" indent="yes" /><xsl:template match="@* | node()"><SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Header /><SOAP-ENV:Body><RFCDEMO:BAPI_PR_GETDETAIL xmlns:RFCDEMO="urn:sap-com:document:sap:rfc:functions"><ACCOUNT_ASSIGNMENT /><DELIVERY_ADDRESS /><HEADER_TEXT /><ITEM_TEXT /><NUMBER>$$Y$$</NUMBER><SC_COMPONENTS /><SERIAL_NUMBERS /><SERVICES /><VERSION /><ALLVERSIONS /><EXTENSIONOUT /><PRACCOUNT /><PRADDRDELIVERY /><PRCOMPONENTS /><PRHEADERTEXT /><PRITEM /><PRITEMTEXT /><RETURN /><SERIALNUMBERS /><SERVICEACCOUNT /><SERVICECONTRACTLIMITS /><SERVICELIMIT /><SERVICELINES /><SERVICELONGTEXTS /><SERVICEOUTLINE /></RFCDEMO:BAPI_PR_GETDETAIL></SOAP-ENV:Body></SOAP-ENV:Envelope></xsl:template></xsl:stylesheet>', N'<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><RFCDEMO:BAPI_PR_GETDETAIL.Response xmlns:RFCDEMO="urn:sap-com:document:sap:rfc:functions"><PRHEADER><PREQ_NO /><PR_TYPE /><CTRL_IND /><GENERAL_RELEASE /><CREATE_IND /><ITEM_INTVL /><LAST_ITEM /><AUTO_SOURCE /><MEMORY /><HOLD_COMPLETE /><HOLD_UNCOMPLETE /><PARK_COMPLETE /><PARK_UNCOMPLETE /><MEMORYTYPE /><PREQ_NO /></PRHEADER><ALLVERSIONS><item><DOC_TYPE /><DOC_NUMBER /><ITEM_NUMBER /><VERSION /><CREATED_BY /><CR_ON /><REC_TIME /><RELEASED_BY /><RELEASE_DATE /><RELEASE_TIME /><RELEASEBY_PUR /><RELEASEDATE_PUR /><RELEASETIME_PUR /><REASON /><DESCRIPTION /><REQ_BY_EXT /><REQ_BY /><NET_VALUE /><VALUE_CHANGED /><CURRENCY /><CURRENCY_ISO /><POST_DATE /><COMPLETED /><STATUS /><DELETE_IND /><STATUS_DOC_OLD /></item></ALLVERSIONS><EXTENSIONOUT><item><STRUCTURE /><VALUEPART1 /><VALUEPART2 /><VALUEPART3 /><VALUEPART4 /></item></EXTENSIONOUT><PRACCOUNT><item><PREQ_ITEM /><SERIAL_NO /><DELETE_IND /><CREAT_DATE /><QUANTITY /><DISTR_PERC /><NET_VALUE /><GL_ACCOUNT /><BUS_AREA /><COSTCENTER /><SD_DOC /><ITM_NUMBER /><SCHED_LINE /><ASSET_NO /><SUB_NUMBER /><ORDERID /><GR_RCPT /><UNLOAD_PT /><CO_AREA /><COSTOBJECT /><PROFIT_CTR /><WBS_ELEMENT /><NETWORK /><RL_EST_KEY /><PART_ACCT /><CMMT_ITEM /><REC_IND /><FUNDS_CTR /><FUND /><FUNC_AREA /><REF_DATE /><TAX_CODE /><TAXJURCODE /><NOND_ITAX /><ACTTYPE /><CO_BUSPROC /><RES_DOC /><RES_ITEM /><ACTIVITY /><GRANT_NBR /><CMMT_ITEM_LONG /><FUNC_AREA_LONG /><BUDGET_PERIOD /></item></PRACCOUNT><PRADDRDELIVERY><item><PREQ_NO /><PREQ_ITEM /><ADDR_NO /><FORMOFADDR /><NAME /><NAME_2 /><NAME_3 /><NAME_4 /><C_O_NAME /><CITY /><DISTRICT /><CITY_NO /><POSTL_COD1 /><POSTL_COD2 /><POSTL_COD3 /><PO_BOX /><PO_BOX_CIT /><DELIV_DIS /><STREET /><STREET_NO /><STR_ABBR /><HOUSE_NO /><STR_SUPPL1 /><STR_SUPPL2 /><LOCATION /><BUILDING /><FLOOR /><ROOM_NO /><COUNTRY /><LANGU /><REGION /><SORT1 /><SORT2 /><TIME_ZONE /><TAXJURCODE /><ADR_NOTES /><COMM_TYPE /><TEL1_NUMBR /><TEL1_EXT /><FAX_NUMBER /><FAX_EXTENS /><STREET_LNG /><DISTRCT_NO /><CHCKSTATUS /><PBOXCIT_NO /><TRANSPZONE /><HOUSE_NO2 /><E_MAIL /><STR_SUPPL3 /><TITLE /><COUNTRYISO /><LANGU_ISO /><BUILD_LONG /><REGIOGROUP /></item></PRADDRDELIVERY><PRCOMPONENTS><item><PREQ_ITEM /><ITEM_NO /><MATERIAL /><ENTRY_QUANTITY /><ENTRY_UOM /><ENTRY_UOM_ISO /><FIXED_QUAN /><PLANT /><REQ_DATE /><CHANGE_ID /><MATERIAL_EXTERNAL /><MATERIAL_GUID /><MATERIAL_VERSION /><ITEM_CAT /><REQ_QUAN /><BASE_UOM /><BASE_UOM_ISO /><PHANT_ITEM /><BATCH /><MAT_PROVISION /><ISS_ST_LOC /></item></PRCOMPONENTS><PRHEADERTEXT><item><PREQ_NO /><PREQ_ITEM /><TEXT_ID /><TEXT_FORM /><TEXT_LINE /></item></PRHEADERTEXT><PRITEM><item><PREQ_ITEM /><DOC_TYPE /><DOC_CAT /><CTRL_IND /><DELETE_IND /><PROC_STAT /><CREATE_IND /><REL_IND /><REL_STATUS /><REL_STRAT /><PUR_GROUP /><CREATED_BY /><CH_ON /><PREQ_NAME /><SHORT_TEXT /><MATERIAL /><MATERIAL_EXTERNAL /><MATERIAL_GUID /><MATERIAL_VERSION /><PUR_MAT /><PUR_MAT_EXTERNAL /><PUR_MAT_GUID /><PUR_MAT_VERSION /><PLANT /><STORE_LOC /><TRACKINGNO /><MATL_GROUP /><SUPPL_PLNT /><QUANTITY /><UNIT /><PREQ_UNIT_ISO /><SHORTAGE /><PREQ_DATE /><DEL_DATCAT_EXT /><DELIV_DATE /><REL_DATE /><GR_PR_TIME /><PREQ_PRICE /><PRICE_UNIT /><ITEM_CAT /><ACCTASSCAT /><CONSUMPT /><CHANGEABLE /><DISTRIB /><PART_INV /><GR_IND /><GR_NON_VAL /><IR_IND /><DES_VENDOR /><FIXED_VEND /><PURCH_ORG /><AGMT_DOC_CAT /><AGREEMENT /><AGMT_ITEM /><INFO_REC /><ASSIGNED /><QUOTA_ARR /><QUOTARRITM /><MRP_CTRLER /><BOMEXPL_NO /><LAST_RESUB /><RESUBMIS /><NO_RESUB /><PO_NUMBER /><PO_ITEM /><PO_DATE /><ORDERED /><SHEET_NO /><VAL_TYPE /><COMMITMENT /><CLOSED /><RESERV_NO /><SPEC_STOCK /><SETRESERNO /><SETTLITMNO /><FIXED /><PO_UNIT /><PO_UNIT_ISO /><REV_LEV /><ADVANCE /><PCKG_NO /><KANBAN_IND /><PO_PRICE /><INT_OBJ_NO /><REL_GROUP /><SUBJ_TO_R /><PROMOTION /><BATCH /><SPSTCK_PHY /><PROD_VERSION /><CMMT_ITEM /><FUNDS_CTR /><FUND /><CONFIG_ORG /><CONF_MATL /><COM_QTY /><COM_DATE /><MATL_CAT /><ADDRESS2 /><ADDRESS /><CUSTOMER /><SUPP_VENDOR /><SC_VENDOR /><VALUATION_SPEC_STOCK /><VALUE_ITEM /><CURRENCY /><CURRENCY_ISO /><VEND_MAT /><GENERAL_RELEASE /><MANUF_PROF /><UOMUSAGE /><LANGU /><LANGU_ISO /><VALIDITY_OBJECT /><MANU_MAT /><MFR_NO /><MFR_NO_EXT /><FW_ORDER /><FW_ORDER_ITEM /><PLND_DELRY /><MRP_AREA /><DELIV_TIME /><REF_REQ /><REF_REQ_ITEM /><GRANT_NBR /><FUNC_AREA /><MEMORY /><PROCSTAT /><REL_VALUE /><REQ_BLOCKED /><REASON_BLOCKING /><VERSION /><PROCURING_PLANT /><EXT_PROC_PROF /><EXT_PROC_REF_DOC /><EXT_PROC_REF_ITEM /><FUNDS_RES /><RES_ITEM /><CONF_MATL_EXTERNAL /><CONF_MATL_GUID /><CONF_MATL_VERSION /><SUPPL_STLOC /><PRIO_URGENCY /><PRIO_REQUIREMENT /><MINREMLIFE /><PERIOD_IND_EXPIRATION_DATE /><BUDGET_PERIOD /></item></PRITEM><PRITEMTEXT><item><PREQ_NO /><PREQ_ITEM /><TEXT_ID /><TEXT_FORM /><TEXT_LINE /></item></PRITEMTEXT><RETURN><item><TYPE /><ID /><NUMBER /><MESSAGE /><LOG_NO /><LOG_MSG_NO /><MESSAGE_V1 /><MESSAGE_V2 /><MESSAGE_V3 /><MESSAGE_V4 /><PARAMETER /><ROW /><FIELD /><SYSTEM /></item></RETURN><SERIALNUMBERS><item><PREQ_ITEM /><DELETE_IND /><SERIALNO /><UII /></item></SERIALNUMBERS><SERVICEACCOUNT><item><DOC_ITEM /><OUTLINE /><SRV_LINE /><SERIAL_NO /><SERIAL_NO_ITEM /><DEL_IND /><QUANTITY /><PERCENT /></item></SERVICEACCOUNT><SERVICECONTRACTLIMITS><item><DOC_ITEM /><CONTRACT /><CONTRACT_ITEM /><DEL_IND /><LIMIT /><NO_LIMIT /><TOTAL_VALUE /></item></SERVICECONTRACTLIMITS><SERVICELIMIT><item><DOC_ITEM /><DEL_IND /><OVERALL_LIMIT /><NO_LIMIT /><EXP_VALUE /><TOTAL_VALUE /><CON_PRICE_CHG /><CON_PRICE_PERC /><SSC_SRV_TYPE /><SSC_EDITION /><SSC_LIMIT /><SSC_NO_LIMIT /><SSC_PRICE_PERC /><SSC_TOTAL_VALUE /><MSS_NUMBER /><MSS_LIMIT /><MSS_NO_LIMIT /><MSS_PRICE_CHG /><MSS_PRICE_PERC /><MSS_TOTAL_VALUE /><OTHER_LIMIT /><OTHER_NO_LIMIT /><OTHER_TOTAL_VALUE /><COST_ELEMENT /><TAX_CODE /><TAXJURCODE /><NDI_TAX /></item></SERVICELIMIT><SERVICELINES><item><DOC_ITEM /><OUTLINE /><SRV_LINE /><DEL_IND /><SERVICE /><SHORT_TEXT /><SSC_SRV_TYPE /><SSC_EDITION /><SSC_ITEM /><EXT_SERVICE /><QUANTITY /><UOM /><UOM_ISO /><OVF_TOL /><OVF_UNLIM /><UPDATE_COND /><GROSS_PRICE /><CURRENCY /><PRICE_UNIT /><DIST_IND_ACC /><PART_INV_IND /><WAGE_TYPE /><MATL_GROUP /><USERF1_NUM /><USERF2_NUM /><USERF1_TXT /><USERF2_TXT /><NET_PRICE /><TAX_AMOUNT /><PRICE_CHG /><TAX_CODE /><TAXJURCODE /><NDI_TAX /><HR_PERS_NO /><HR_PERS_NO_EXT /><HR_DATE /><HR_START_TIME /><HR_END_TIME /><FORMULA /><FORM_VAL1 /><FORM_VAL2 /><FORM_VAL3 /><FORM_VAL4 /><FORM_VAL5 /><LINE_TYPE /><LINE_CAT /><ALTERNATIVE /><ALT_SRV_LINE /><PER_SDATE /><PER_EDATE /></item></SERVICELINES><SERVICELONGTEXTS><item><DOC_ITEM /><OUTLINE /><SRV_LINE /><TEXT_TYPE /><FORMAT /><LINE /><CHANGE_ID /></item></SERVICELONGTEXTS><SERVICEOUTLINE><item><DOC_ITEM /><OUTLINE /><PARENT_OUTLINE /><OUTLINE_LEVEL_NAME /><DEL_IND /><SHORT_TEXT /><FROM_LINE /><TO_LINE /><ACTUAL_PRICE /><TOT_PRICE /></item></SERVICEOUTLINE></RFCDEMO:BAPI_PR_GETDETAIL.Response></SOAP-ENV:Body></SOAP-ENV:Envelope>', N'<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:msxsl="urn:schemas-microsoft-com:xslt" version="1.0" exclude-result-prefixes="msxsl"><xsl:output method="xml" indent="yes" /><xsl:template match="@* | node()"><result /></xsl:template></xsl:stylesheet>', N'BAPI', N'Amit_Anand14', CAST(0x0000A99D005D0D44 AS DateTime), NULL, NULL)

SET IDENTITY_INSERT [usch_aese].[ExternalAPIData] OFF



Request Payload

{
    "name":"BAPI_PR_GETDETAIL",
"description":"Get Details for One MEREQ Object",
"requestXML":"<SOAP-ENV:Envelope xmlns:SOAP-ENV=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:SOAP-ENC=\"http://schemas.xmlsoap.org/soap/encoding/\"><SOAP-ENV:Header /><SOAP-ENV:Body><RFCDEMO:BAPI_PR_GETDETAIL xmlns:RFCDEMO=\"urn:sap-com:document:sap:rfc:functions\"><ACCOUNT_ASSIGNMENT /><DELIVERY_ADDRESS /><HEADER_TEXT /><ITEM_TEXT /><NUMBER>$$Y$$</NUMBER><SC_COMPONENTS /><SERIAL_NUMBERS /><SERVICES /><VERSION /><ALLVERSIONS /><EXTENSIONOUT /><PRACCOUNT /><PRADDRDELIVERY /><PRCOMPONENTS /><PRHEADERTEXT /><PRITEM /><PRITEMTEXT /><RETURN /><SERIALNUMBERS /><SERVICEACCOUNT /><SERVICECONTRACTLIMITS /><SERVICELIMIT /><SERVICELINES /><SERVICELONGTEXTS /><SERVICEOUTLINE /></RFCDEMO:BAPI_PR_GETDETAIL></SOAP-ENV:Body></SOAP-ENV:Envelope>', N'<xsl:stylesheet xmlns:xsl=\"http://www.w3.org/1999/XSL/Transform\" xmlns:msxsl=\"urn:schemas-microsoft-com:xslt\" version=\"1.0\" exclude-result-prefixes=\"msxsl\"><xsl:output method=\"xml\" indent=\"yes\" /><xsl:template match=\"@* | node()\"><SOAP-ENV:Envelope xmlns:SOAP-ENV=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:SOAP-ENC=\"http://schemas.xmlsoap.org/soap/encoding/\"><SOAP-ENV:Header /><SOAP-ENV:Body><RFCDEMO:BAPI_PR_GETDETAIL xmlns:RFCDEMO=\"urn:sap-com:document:sap:rfc:functions\"><ACCOUNT_ASSIGNMENT /><DELIVERY_ADDRESS /><HEADER_TEXT /><ITEM_TEXT /><NUMBER>$$Y$$</NUMBER><SC_COMPONENTS /><SERIAL_NUMBERS /><SERVICES /><VERSION /><ALLVERSIONS /><EXTENSIONOUT /><PRACCOUNT /><PRADDRDELIVERY /><PRCOMPONENTS /><PRHEADERTEXT /><PRITEM /><PRITEMTEXT /><RETURN /><SERIALNUMBERS /><SERVICEACCOUNT /><SERVICECONTRACTLIMITS /><SERVICELIMIT /><SERVICELINES /><SERVICELONGTEXTS /><SERVICEOUTLINE /></RFCDEMO:BAPI_PR_GETDETAIL></SOAP-ENV:Body></SOAP-ENV:Envelope></xsl:template></xsl:stylesheet>', N'<SOAP-ENV:Envelope xmlns:SOAP-ENV=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:SOAP-ENC=\"http://schemas.xmlsoap.org/soap/encoding/\"><SOAP-ENV:Body><RFCDEMO:BAPI_PR_GETDETAIL.Response xmlns:RFCDEMO=\"urn:sap-com:document:sap:rfc:functions\"><PRHEADER><PREQ_NO /><PR_TYPE /><CTRL_IND /><GENERAL_RELEASE /><CREATE_IND /><ITEM_INTVL /><LAST_ITEM /><AUTO_SOURCE /><MEMORY /><HOLD_COMPLETE /><HOLD_UNCOMPLETE /><PARK_COMPLETE /><PARK_UNCOMPLETE /><MEMORYTYPE /><PREQ_NO /></PRHEADER><ALLVERSIONS><item><DOC_TYPE /><DOC_NUMBER /><ITEM_NUMBER /><VERSION /><CREATED_BY /><CR_ON /><REC_TIME /><RELEASED_BY /><RELEASE_DATE /><RELEASE_TIME /><RELEASEBY_PUR /><RELEASEDATE_PUR /><RELEASETIME_PUR /><REASON /><DESCRIPTION /><REQ_BY_EXT /><REQ_BY /><NET_VALUE /><VALUE_CHANGED /><CURRENCY /><CURRENCY_ISO /><POST_DATE /><COMPLETED /><STATUS /><DELETE_IND /><STATUS_DOC_OLD /></item></ALLVERSIONS><EXTENSIONOUT><item><STRUCTURE /><VALUEPART1 /><VALUEPART2 /><VALUEPART3 /><VALUEPART4 /></item></EXTENSIONOUT><PRACCOUNT><item><PREQ_ITEM /><SERIAL_NO /><DELETE_IND /><CREAT_DATE /><QUANTITY /><DISTR_PERC /><NET_VALUE /><GL_ACCOUNT /><BUS_AREA /><COSTCENTER /><SD_DOC /><ITM_NUMBER /><SCHED_LINE /><ASSET_NO /><SUB_NUMBER /><ORDERID /><GR_RCPT /><UNLOAD_PT /><CO_AREA /><COSTOBJECT /><PROFIT_CTR /><WBS_ELEMENT /><NETWORK /><RL_EST_KEY /><PART_ACCT /><CMMT_ITEM /><REC_IND /><FUNDS_CTR /><FUND /><FUNC_AREA /><REF_DATE /><TAX_CODE /><TAXJURCODE /><NOND_ITAX /><ACTTYPE /><CO_BUSPROC /><RES_DOC /><RES_ITEM /><ACTIVITY /><GRANT_NBR /><CMMT_ITEM_LONG /><FUNC_AREA_LONG /><BUDGET_PERIOD /></item></PRACCOUNT><PRADDRDELIVERY><item><PREQ_NO /><PREQ_ITEM /><ADDR_NO /><FORMOFADDR /><NAME /><NAME_2 /><NAME_3 /><NAME_4 /><C_O_NAME /><CITY /><DISTRICT /><CITY_NO /><POSTL_COD1 /><POSTL_COD2 /><POSTL_COD3 /><PO_BOX /><PO_BOX_CIT /><DELIV_DIS /><STREET /><STREET_NO /><STR_ABBR /><HOUSE_NO /><STR_SUPPL1 /><STR_SUPPL2 /><LOCATION /><BUILDING /><FLOOR /><ROOM_NO /><COUNTRY /><LANGU /><REGION /><SORT1 /><SORT2 /><TIME_ZONE /><TAXJURCODE /><ADR_NOTES /><COMM_TYPE /><TEL1_NUMBR /><TEL1_EXT /><FAX_NUMBER /><FAX_EXTENS /><STREET_LNG /><DISTRCT_NO /><CHCKSTATUS /><PBOXCIT_NO /><TRANSPZONE /><HOUSE_NO2 /><E_MAIL /><STR_SUPPL3 /><TITLE /><COUNTRYISO /><LANGU_ISO /><BUILD_LONG /><REGIOGROUP /></item></PRADDRDELIVERY><PRCOMPONENTS><item><PREQ_ITEM /><ITEM_NO /><MATERIAL /><ENTRY_QUANTITY /><ENTRY_UOM /><ENTRY_UOM_ISO /><FIXED_QUAN /><PLANT /><REQ_DATE /><CHANGE_ID /><MATERIAL_EXTERNAL /><MATERIAL_GUID /><MATERIAL_VERSION /><ITEM_CAT /><REQ_QUAN /><BASE_UOM /><BASE_UOM_ISO /><PHANT_ITEM /><BATCH /><MAT_PROVISION /><ISS_ST_LOC /></item></PRCOMPONENTS><PRHEADERTEXT><item><PREQ_NO /><PREQ_ITEM /><TEXT_ID /><TEXT_FORM /><TEXT_LINE /></item></PRHEADERTEXT><PRITEM><item><PREQ_ITEM /><DOC_TYPE /><DOC_CAT /><CTRL_IND /><DELETE_IND /><PROC_STAT /><CREATE_IND /><REL_IND /><REL_STATUS /><REL_STRAT /><PUR_GROUP /><CREATED_BY /><CH_ON /><PREQ_NAME /><SHORT_TEXT /><MATERIAL /><MATERIAL_EXTERNAL /><MATERIAL_GUID /><MATERIAL_VERSION /><PUR_MAT /><PUR_MAT_EXTERNAL /><PUR_MAT_GUID /><PUR_MAT_VERSION /><PLANT /><STORE_LOC /><TRACKINGNO /><MATL_GROUP /><SUPPL_PLNT /><QUANTITY /><UNIT /><PREQ_UNIT_ISO /><SHORTAGE /><PREQ_DATE /><DEL_DATCAT_EXT /><DELIV_DATE /><REL_DATE /><GR_PR_TIME /><PREQ_PRICE /><PRICE_UNIT /><ITEM_CAT /><ACCTASSCAT /><CONSUMPT /><CHANGEABLE /><DISTRIB /><PART_INV /><GR_IND /><GR_NON_VAL /><IR_IND /><DES_VENDOR /><FIXED_VEND /><PURCH_ORG /><AGMT_DOC_CAT /><AGREEMENT /><AGMT_ITEM /><INFO_REC /><ASSIGNED /><QUOTA_ARR /><QUOTARRITM /><MRP_CTRLER /><BOMEXPL_NO /><LAST_RESUB /><RESUBMIS /><NO_RESUB /><PO_NUMBER /><PO_ITEM /><PO_DATE /><ORDERED /><SHEET_NO /><VAL_TYPE /><COMMITMENT /><CLOSED /><RESERV_NO /><SPEC_STOCK /><SETRESERNO /><SETTLITMNO /><FIXED /><PO_UNIT /><PO_UNIT_ISO /><REV_LEV /><ADVANCE /><PCKG_NO /><KANBAN_IND /><PO_PRICE /><INT_OBJ_NO /><REL_GROUP /><SUBJ_TO_R /><PROMOTION /><BATCH /><SPSTCK_PHY /><PROD_VERSION /><CMMT_ITEM /><FUNDS_CTR /><FUND /><CONFIG_ORG /><CONF_MATL /><COM_QTY /><COM_DATE /><MATL_CAT /><ADDRESS2 /><ADDRESS /><CUSTOMER /><SUPP_VENDOR /><SC_VENDOR /><VALUATION_SPEC_STOCK /><VALUE_ITEM /><CURRENCY /><CURRENCY_ISO /><VEND_MAT /><GENERAL_RELEASE /><MANUF_PROF /><UOMUSAGE /><LANGU /><LANGU_ISO /><VALIDITY_OBJECT /><MANU_MAT /><MFR_NO /><MFR_NO_EXT /><FW_ORDER /><FW_ORDER_ITEM /><PLND_DELRY /><MRP_AREA /><DELIV_TIME /><REF_REQ /><REF_REQ_ITEM /><GRANT_NBR /><FUNC_AREA /><MEMORY /><PROCSTAT /><REL_VALUE /><REQ_BLOCKED /><REASON_BLOCKING /><VERSION /><PROCURING_PLANT /><EXT_PROC_PROF /><EXT_PROC_REF_DOC /><EXT_PROC_REF_ITEM /><FUNDS_RES /><RES_ITEM /><CONF_MATL_EXTERNAL /><CONF_MATL_GUID /><CONF_MATL_VERSION /><SUPPL_STLOC /><PRIO_URGENCY /><PRIO_REQUIREMENT /><MINREMLIFE /><PERIOD_IND_EXPIRATION_DATE /><BUDGET_PERIOD /></item></PRITEM><PRITEMTEXT><item><PREQ_NO /><PREQ_ITEM /><TEXT_ID /><TEXT_FORM /><TEXT_LINE /></item></PRITEMTEXT><RETURN><item><TYPE /><ID /><NUMBER /><MESSAGE /><LOG_NO /><LOG_MSG_NO /><MESSAGE_V1 /><MESSAGE_V2 /><MESSAGE_V3 /><MESSAGE_V4 /><PARAMETER /><ROW /><FIELD /><SYSTEM /></item></RETURN><SERIALNUMBERS><item><PREQ_ITEM /><DELETE_IND /><SERIALNO /><UII /></item></SERIALNUMBERS><SERVICEACCOUNT><item><DOC_ITEM /><OUTLINE /><SRV_LINE /><SERIAL_NO /><SERIAL_NO_ITEM /><DEL_IND /><QUANTITY /><PERCENT /></item></SERVICEACCOUNT><SERVICECONTRACTLIMITS><item><DOC_ITEM /><CONTRACT /><CONTRACT_ITEM /><DEL_IND /><LIMIT /><NO_LIMIT /><TOTAL_VALUE /></item></SERVICECONTRACTLIMITS><SERVICELIMIT><item><DOC_ITEM /><DEL_IND /><OVERALL_LIMIT /><NO_LIMIT /><EXP_VALUE /><TOTAL_VALUE /><CON_PRICE_CHG /><CON_PRICE_PERC /><SSC_SRV_TYPE /><SSC_EDITION /><SSC_LIMIT /><SSC_NO_LIMIT /><SSC_PRICE_PERC /><SSC_TOTAL_VALUE /><MSS_NUMBER /><MSS_LIMIT /><MSS_NO_LIMIT /><MSS_PRICE_CHG /><MSS_PRICE_PERC /><MSS_TOTAL_VALUE /><OTHER_LIMIT /><OTHER_NO_LIMIT /><OTHER_TOTAL_VALUE /><COST_ELEMENT /><TAX_CODE /><TAXJURCODE /><NDI_TAX /></item></SERVICELIMIT><SERVICELINES><item><DOC_ITEM /><OUTLINE /><SRV_LINE /><DEL_IND /><SERVICE /><SHORT_TEXT /><SSC_SRV_TYPE /><SSC_EDITION /><SSC_ITEM /><EXT_SERVICE /><QUANTITY /><UOM /><UOM_ISO /><OVF_TOL /><OVF_UNLIM /><UPDATE_COND /><GROSS_PRICE /><CURRENCY /><PRICE_UNIT /><DIST_IND_ACC /><PART_INV_IND /><WAGE_TYPE /><MATL_GROUP /><USERF1_NUM /><USERF2_NUM /><USERF1_TXT /><USERF2_TXT /><NET_PRICE /><TAX_AMOUNT /><PRICE_CHG /><TAX_CODE /><TAXJURCODE /><NDI_TAX /><HR_PERS_NO /><HR_PERS_NO_EXT /><HR_DATE /><HR_START_TIME /><HR_END_TIME /><FORMULA /><FORM_VAL1 /><FORM_VAL2 /><FORM_VAL3 /><FORM_VAL4 /><FORM_VAL5 /><LINE_TYPE /><LINE_CAT /><ALTERNATIVE /><ALT_SRV_LINE /><PER_SDATE /><PER_EDATE /></item></SERVICELINES><SERVICELONGTEXTS><item><DOC_ITEM /><OUTLINE /><SRV_LINE /><TEXT_TYPE /><FORMAT /><LINE /><CHANGE_ID /></item></SERVICELONGTEXTS><SERVICEOUTLINE><item><DOC_ITEM /><OUTLINE /><PARENT_OUTLINE /><OUTLINE_LEVEL_NAME /><DEL_IND /><SHORT_TEXT /><FROM_LINE /><TO_LINE /><ACTUAL_PRICE /><TOT_PRICE /></item></SERVICEOUTLINE></RFCDEMO:BAPI_PR_GETDETAIL.Response></SOAP-ENV:Body></SOAP-ENV:Envelope>",
"requestXSLT":"<xsl:stylesheet xmlns:xsl=\"http://www.w3.org/1999/XSL/Transform\" xmlns:msxsl=\"urn:schemas-microsoft-com:xslt\" version=\"1.0\" exclude-result-prefixes=\"msxsl\"><xsl:output method=\"xml\" indent=\"yes\" /><xsl:template match=\"@* | node()\"><result /></xsl:template></xsl:stylesheet>",
"responseXML":"",
"responseXSLT":"",
"targetType":"BAPI"
}
