This page demonstrates the use of Process Status Userview Menu using one of the sample applications bundled with Joget Workflow, HR Expenses Claim App.
In this modified App, we added 2 menus into the existing Userview. In the first one, we have a list listing all claims.

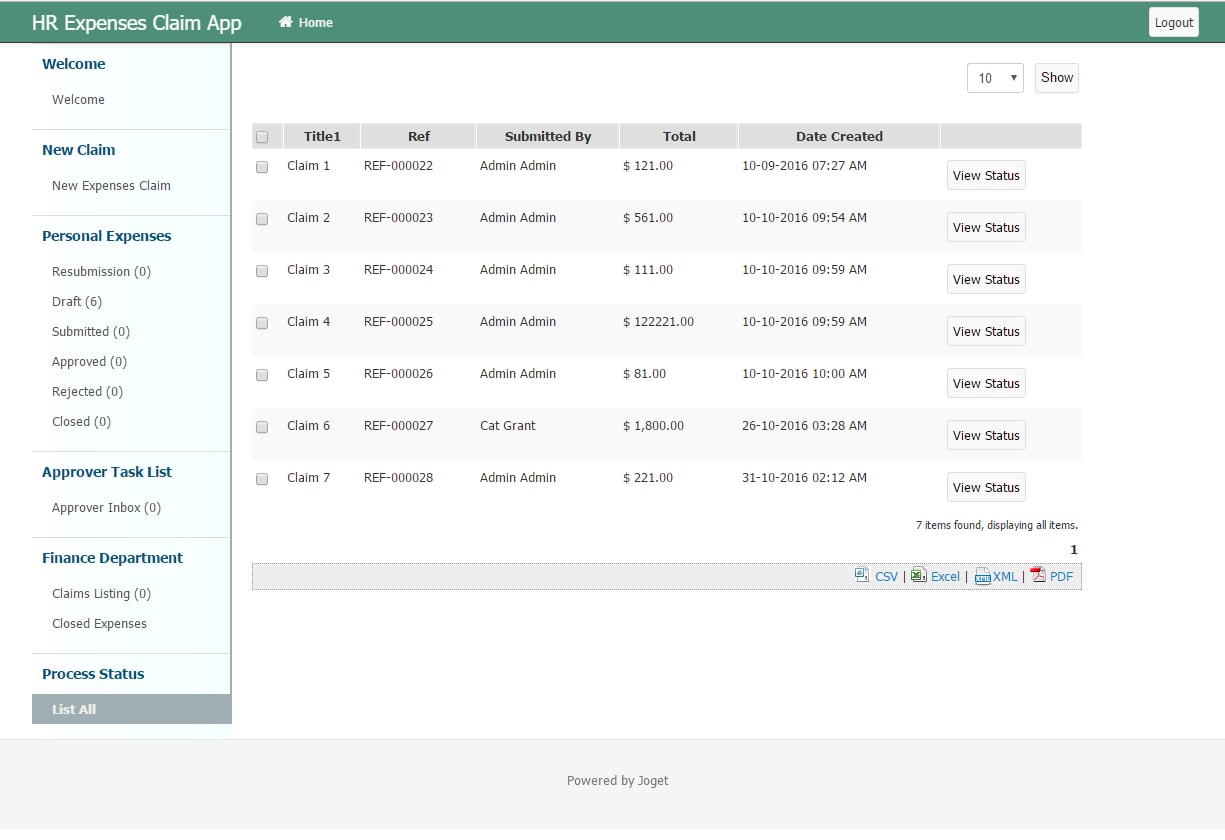

Figure 1: List showing all claims
In the listing, we added a link to the second menu, the Process Status menu itself.

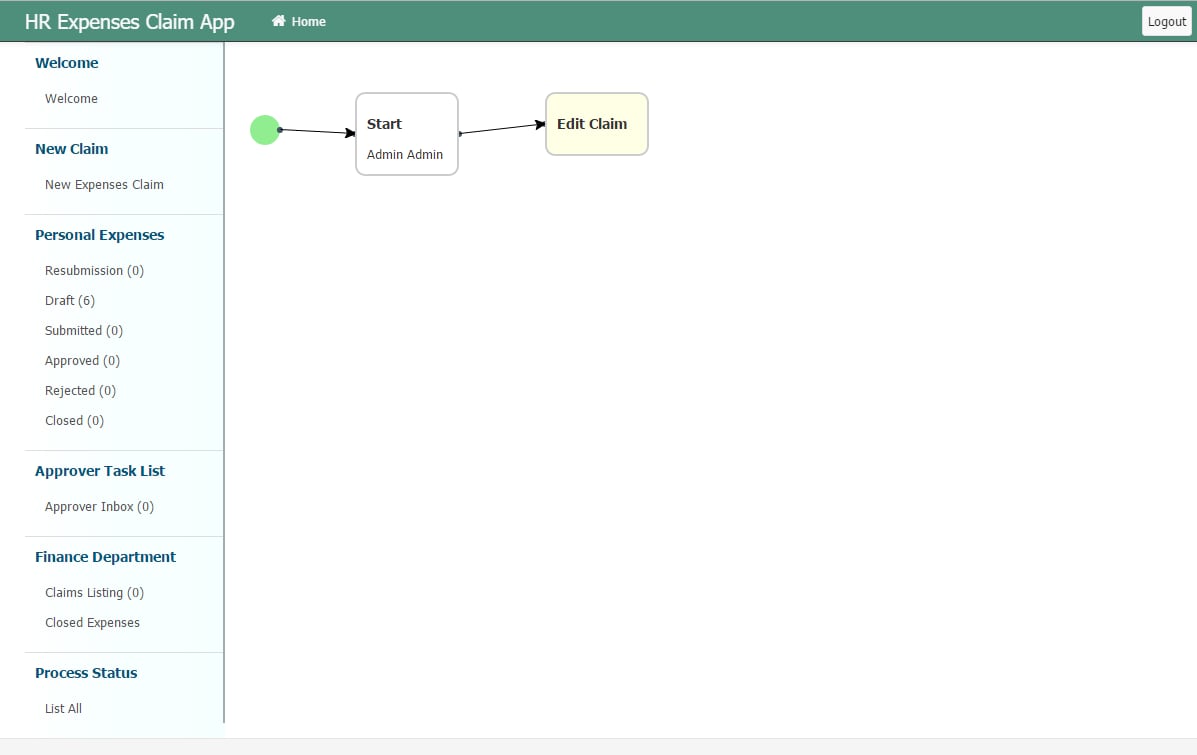

Figure 2: Process Status

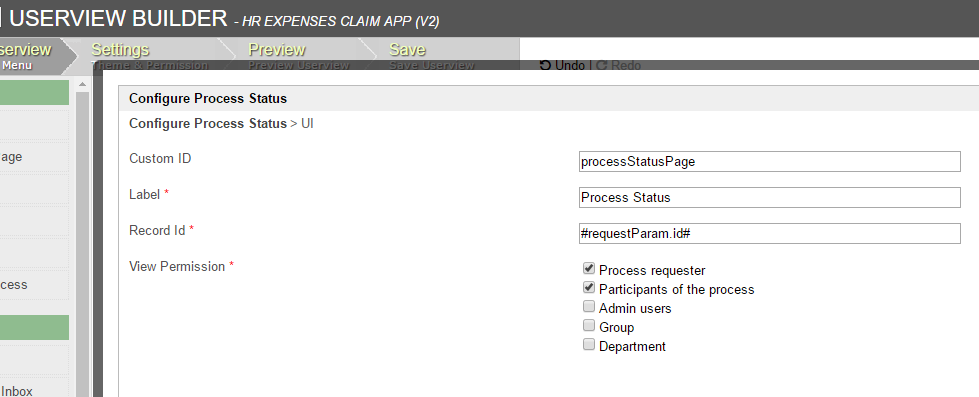

This is the configurations of the Process Status menu.

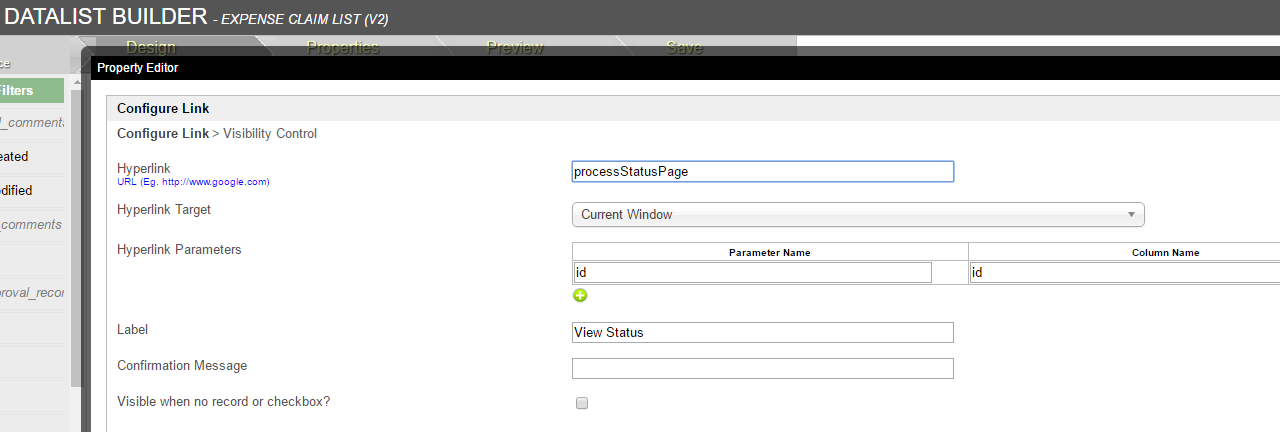

This is the properties of the link in the Datalist.
Sample App
APP_hr_expense-2-20161107164857.jwa
Attachments:
APP_hr_expense-2-20161107164857.jwa (application/octet-stream)
