New Feature

This is a new feature in Joget DX.

Introduction

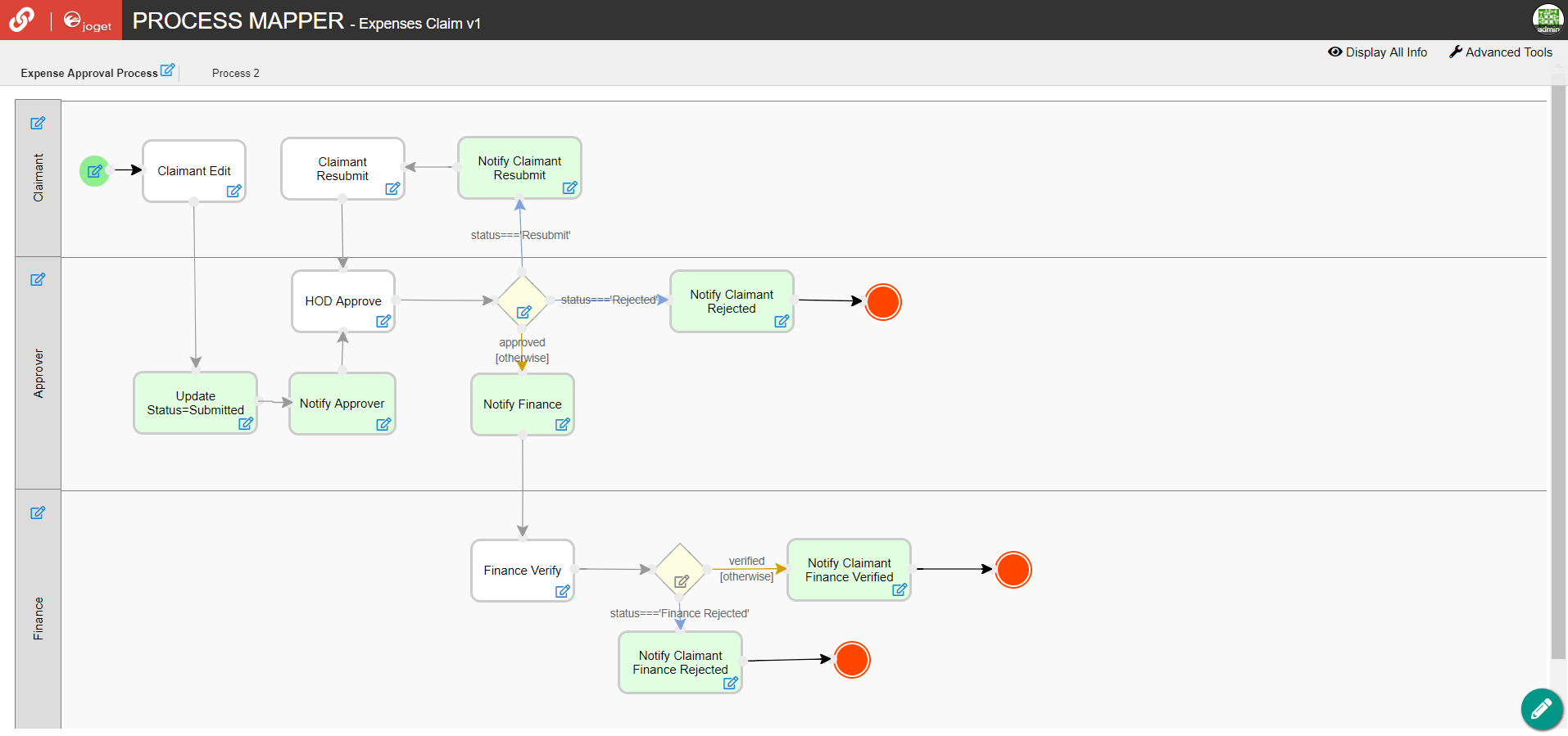

The Process Mapper allows one to alternatively map participants, activities, tools, and routes visually in a process design view

Please take note that the Decision Tool Plugin will take precedence over existing conditional setup in the Process Builder

Get Started

We will be using the existing built-in App Expenses Claims as an example. Here are the steps to access to the Process Mapper:

StepsScreens (Click to View)
  1. Start Joget Server and open the App Center.

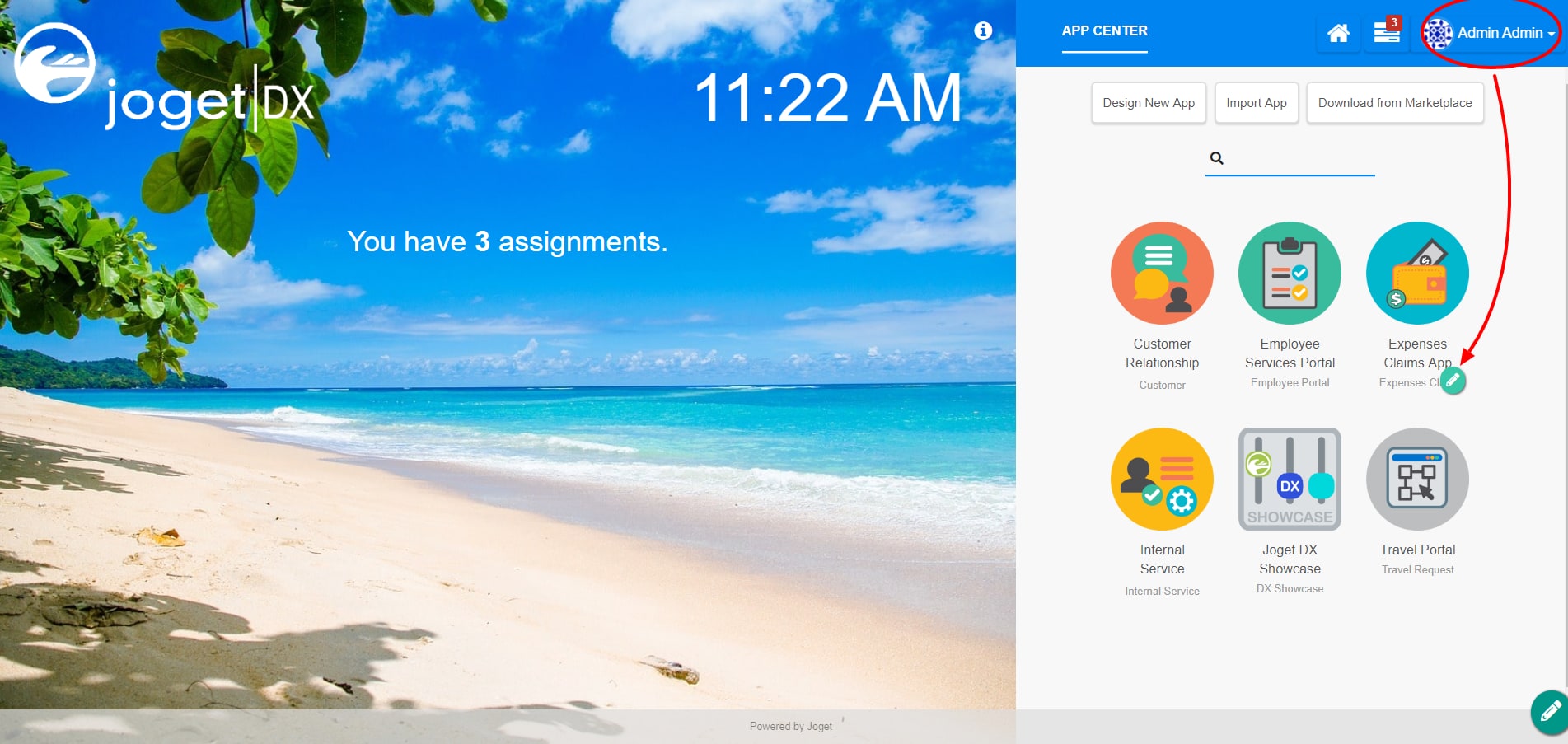

  2. Log in as admin and click on the pencil icon on the Expenses Claim to open the Design App. (see Figure 1)

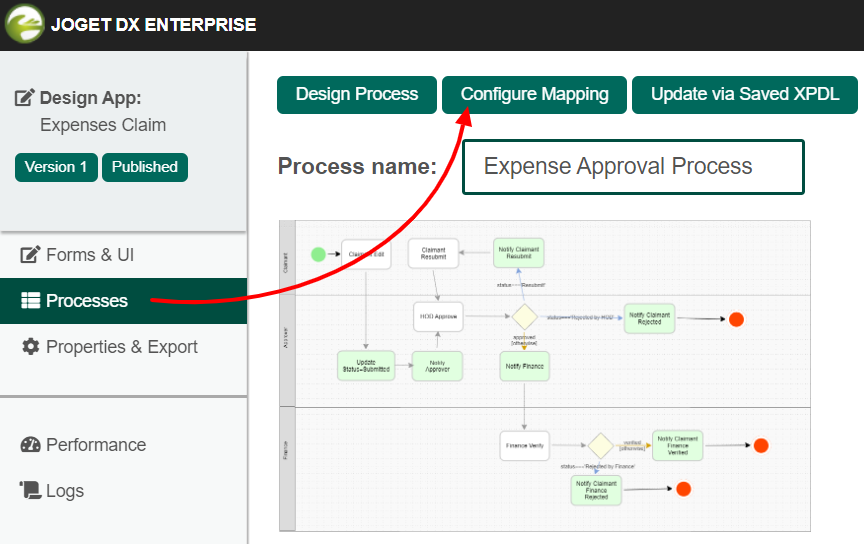

  3. In the Design App, click on Processes and click on Map Routes to Plugins.

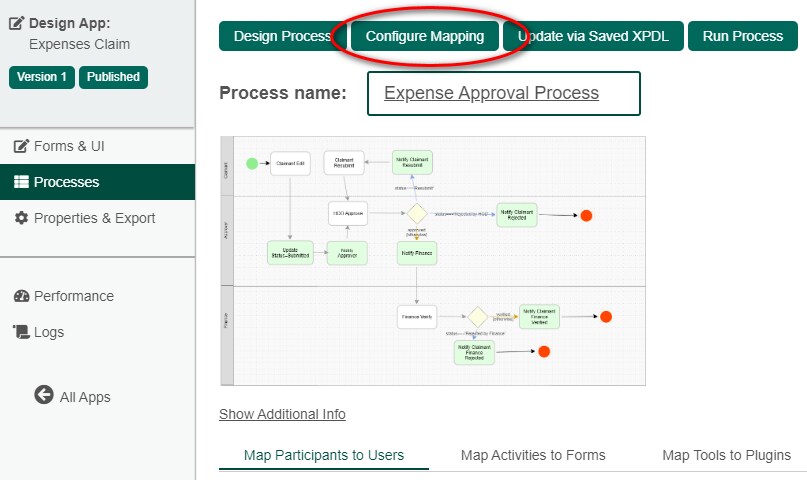

  4. Click on Configure Mapping button (see Figure 2)

Figure 1

Figure 2

Process Mapper Properties

NameDescriptionScreens (Click to View)
<Process Name>Clicking on the Process Name will display the Process Start White List in the Map Participants to Users

<Participant Name>Clicking on the Participant Name will display the Mapping Options in the Map Participants to Users
StartClicking on the Start node will display the Run Process in the Map Activities to Forms
ActivityClicking on any of the Activity nodes will display the Mapping Options in the Map Activities to Forms
ToolClicking on any of the Tool nodes will display the Plugin Options in the Map Tools to Plugins
RouteClicking on any of the Route nodes will display the Plugin Options in the Map Routes to Plugins
Display All Info

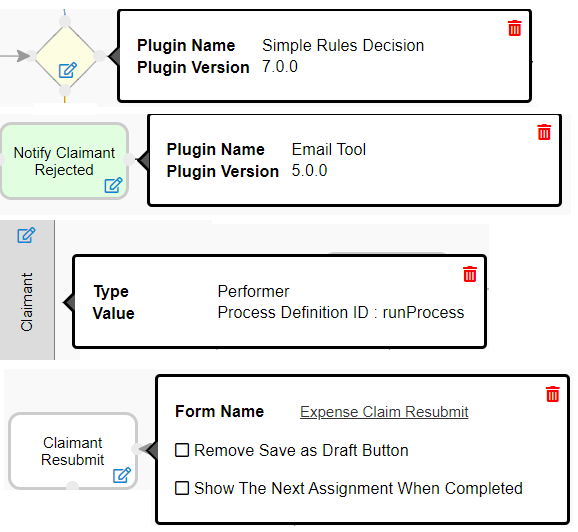

When hovering the mouse over the Display All Info, a list of Info types will be available as shown below:

  • Participants - Displays Participant Type and Value of each Participants and the Process Name (as the Process White List)
  • Activity - Displays the Form Name mapped to each activity nodes (and the Start node)
  • Tool - Displays the Plugin Name and Plugin Version of each Tool node.
  • Route - Displays the Plugin Name and Plugin Version of each Route node.
  • Hide All - Hides all info
Advanced ToolsDisplays i18n Internationalization tab in Builder Advanced Tools


Deleting Existing Mapped Plugins on the Process Mapper

To delete existing mapped plugins, hover the mouse to a node and click on the red button.
