Studio Configuration

The Studio tab allows you to edit the default configuration settings for all the studio instances running.
To modify the Studio Configuration Settings:

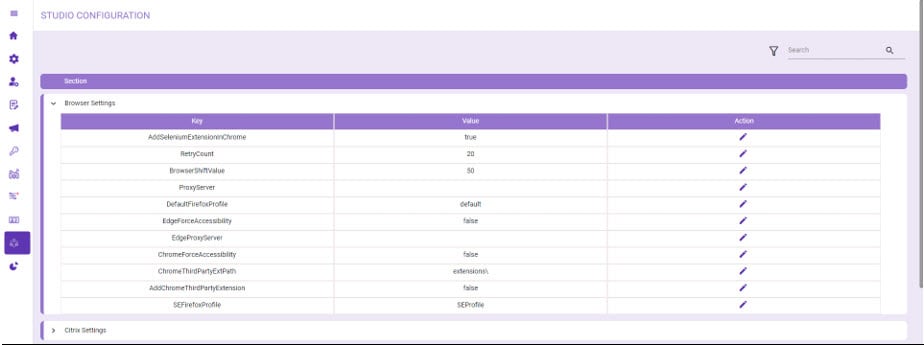

  1. Go to Module Configuration > Studio.  The Studio Configuration page is displayed.

  2. Click the   to expand the required Section. The associated Key, Value and Action fields are displayed. The table below lists the Key description for each settings.
  3. Click the    edit icon in the Action column for the Key whose value you want to modify.





Key Description
Browser Settings
AddSeleniumExtensionInChrome

Allows you to inject the selenium extension in the chrome browser. Possible values are:

  • True
  • False
RetryCount Enables you to specify the maximum retry count value when a web element is not found. For example, 20.
BrowserShiftValue Enables you to specify the browser upside value to shift the browser for either Chrome or Firefox. For example, 50.
ProxyServer Enables you to specify the proxy server address to be used by the chrome driver to disable the Auto Detect LAN setting. For example, Data Server.
DefaultFirefoxProfile Enables you to specify the default name for the Firefox profile. For example, Default.
EdgeForceAccessibility

Enables you to specify the default name for the Firefox profile. For example, Default.
EdgeProxyServer

Allows you to specify if multi window session is allowed, in which more than one Microsoft Edge can be opened simultaneously.
Possible values are:

  • True
  • False
ChromeForceAccessibility Enable you to specify the proxy server address to be used by the Edge driver to disable the Auto Detect LAN setting. You have to set the value to blank in case you want to allow Detect LAN settings for the Edge browser. The default value is blank.
ChromeThirdPartyExtPath

Allows you to enable user accessibility in the chrome browser.
Possible values are:

  • True
  • False

    This value gets the Chrome third party extension path.
AddChromeThirdPartyExtension

Allows you to specify if you want to allow third party extension path for Chrome.
Possible values are:

  • True
  • False
SEFirefoxProfile Firefox profile name that is used by SE to launch all Firefox applications. For example, SE Firefox.
Citrix Settings
CtxEnableConsole

Allows you to enable or disable the Citrix console that shows communication between Citrix and local machine.
Possible values are:

  • True
  • False
CtxFetchTxnLog

Allows you to enable or disable Citrix transaction logs.
Possible values are:

  • True
  • False
IcaClientPath The local path where the wfcrun32.exe exists. For example, C:\Program Files\Citrix\ICA Client\wfcrun32.exe
Java Automation Settings
DynamicAutomationSplitter Allows you to specify the splitter used in Java Automation to split the search path.
AutomationWay

If a web application contains java components and field config do not work while screen scrapping automation way can be changed for the concerned application.
Possible values are:

  • Java_Options_Tools
  • Java_Options
Marketplace Settings
BotstoreAPI_URL Allows you to specify the URL to fetch Bot data for Marketplace. For example,https://search.marketplace.assistedgeautomation.com/indexes/stu-skills/docs.
BotstoreAPI_Key Allows you to specify the API key to fetch the Bot data.
MarketplaceURL Allows you to specify the URL to upload Bots to Marketplace. For example, https://marketplace.assistedgeautomation.com/
BotstoreAPI_Timeout Enables you specify the timespan to wait before the request times out in minutes. For example, 20.
MQTT Settings
EnableMQTT

Allows you to enable or disable the MQTT as a messaging protocol for IOT applications.

Possible values are:

  • True
  • False
PBE Recorder Settings
PBEExePath Allows you to specify the recorder exe file path, if there is no path passed for automated recorder exe file path. For example, PbE\AutomationRecorder.exe.
PBEPortNo Allows you to set the port number for the PBE process.
PortFindAttemptsAndWait Allows you to specify the number of attempts for PBE recorder to find available port to start Websocket server and delay between two attempts in milliseconds. These two values should be separated by comma. For example, 10000, 5000.
AddFirefoxExtension

Enables you to allow the Firefox extension for the PBE process.

Possible values are:

  • True
  • False
PBEChromeExtPath Allows you to specify the path for setting the Chrome extension path for the PBE process.
PBEFirefoxExtPath Allows you to specify the path for setting the Firefox extension path for the PBE process.
DockPBEWinApp

Allows you to specify the key for docking of windows application for the PBE process.

Possible values are:

  • True
  • False
AddChromeExtension

Allows you to specify if you can add Chrome extension to the PBE process.

Possible values are:

  • True
  • False
Prerequisites Settings
PerformPrerequisiteCheck

If the value is set to true, prerequisite checks for OS, Browser, and Plugins are performed.

Possible values are:

  • True
  • False
ShowPreRequisiteAlerts

If the value is set to true, this allows the alerts of the prerequisites to be shown.

Possible values are:

  • True
  • False
ChromeBrowserVersion Allows you to specify the version of the Chrome that is used on the system. For example, 91.0.4472.101.
EnablePrerequisiteReports

You can specify if you want to enable data capturing for prerequisite reports.

Possible values are:

  • True
  • False
Python Settings
PythonScriptPath     Allows you to define the path of Python home directory. In case the environment variable PYTHON_HOME is not set, the defined path is used for python activity execution. For example, C:python36.
Studio Process Settings
StudioResetTime Enables you to set the Automation Studio Rest interval per application in milliseconds, the value should always be greater than 1000ms. For example, 50000.
StudioSignInTime Enables you to set the Automation Studio sign-in interval per application in milliseconds, the value should always be greater than 1000ms. For example, 50000.
StudioSearchTime Enables you to set the Automation Studio process execution timeout value in milliseconds, the value should always be greater than 1000ms. For example, 50000.
ApplicationCautionTimer Enables you to specify the timer in milli seconds to display the caution message Dont close application to return to Studio, while launching applications for configuration. For example, 5000.
EnableAutoSave

Allows you to enable or disable the auto save feature in studio.

Possible values are:

  • True
  • False
AutoSaveInterval Allows you to specify the time interval in minutes to auto save a process. For example, 20.
MultiDomain

Allows you to enable test run of process in   a new app domain.

Possible values are:

  • True
  • False
EnableComplexityCoefficient

Allows you to enable or disable the feature to define the process complexity at the time of deployment.

Possible values are:

  • True
  • False
ExcelloopValuePre176Behaviour

This value has to enabled for the processes before 17.6 and has an excel loop.

Possible values are:

  • True
  • False
Updater Settings
StopPatchNotification

Allows you to stop the auto checking of latest available patches while launching the AE Studio.

Possible values are:

  • True
  • False
Version Control System Settings
CertificateType Allows you to specify the certificate type based on the X509 key storage flags the recommended value to be added is Exportable.
PreserveWhiteSpaceInXmlDoc

Allows you to specify to sign the metadata files with or without including the white spaces. This value is valid only when SignMetadata is set to true.

Possible values are:

  • True
  • False
CertificatePassword Allows you to specify the certificate password, this value is valid only if SignMetadata is set to true.
CertificatePath Allows you to specify the path that is used to sign the metadata files during push to Version Control System, this value is valid only if SignMetadata is set to true.
SignMetadata

Allows you to enable or disable the option to sign the metadata files during push to Version Control System.

Possible values are:

  • True
  • False
Web Driver Settings
Chrome

Allows you to choose multiple or single instance for a driver in Google Chrome.

Possible values are:

  • True
  • False
MicrosoftEdgeWithIECompatibility

Allows you to choose multiple or single instance for a driver in Edge with IE compatibility.

Possible values are:

  • True
  • False

































































































































































































































































































































































































































4.    Make the necessary changes and click Save to save the changes.
