Download File

Download File enables you to download a copy of the specified file from your OneDrive 365 application to your local system.

Using Downlaod File feature

1. Make sure the prerequisites for using Office 365 activities are met.

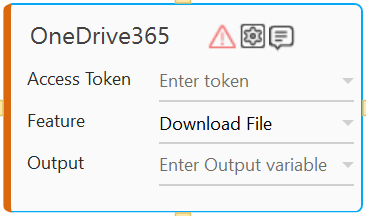

2. Drag the OneDrive 365 activity and drop it below the OAuth activity inside the Application activity block. The validation error symbol disappears when you select at least one feature from the available list.


3. In the Access Token list, select the argument holding the access token retrieved using the OAuth activity
4. In the Feature list, select Download File.

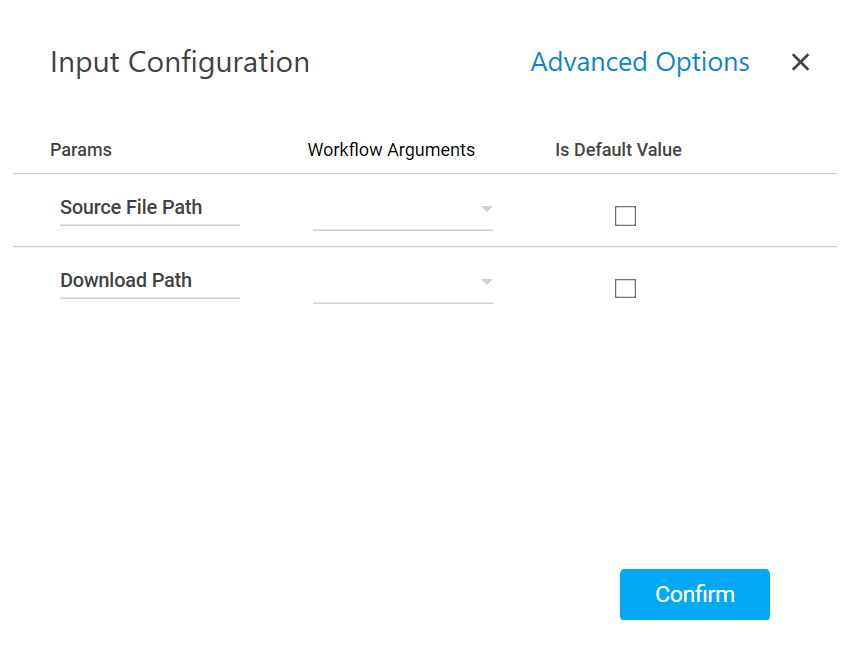

   1. Click the  (Setting) icon to configure the input parameters such as defining the file name and location to download the required file. The Input Configuration screen appears.


      1. Ensure to define all the input parameters as an in argument in the Parameter bar for selection in the mandatory and advanced options.
         1. Mandatory Options:
            1. In the Source File Path list, select the parameter holding the path along with the file name for downloading it to the local system.
            2. In the Download Path list, select the parameter holding the path along with the folder name available on your local system where you want to download the file.
         2. Advanced Options: This is an optional parameter such as a renaming the uploaded file.

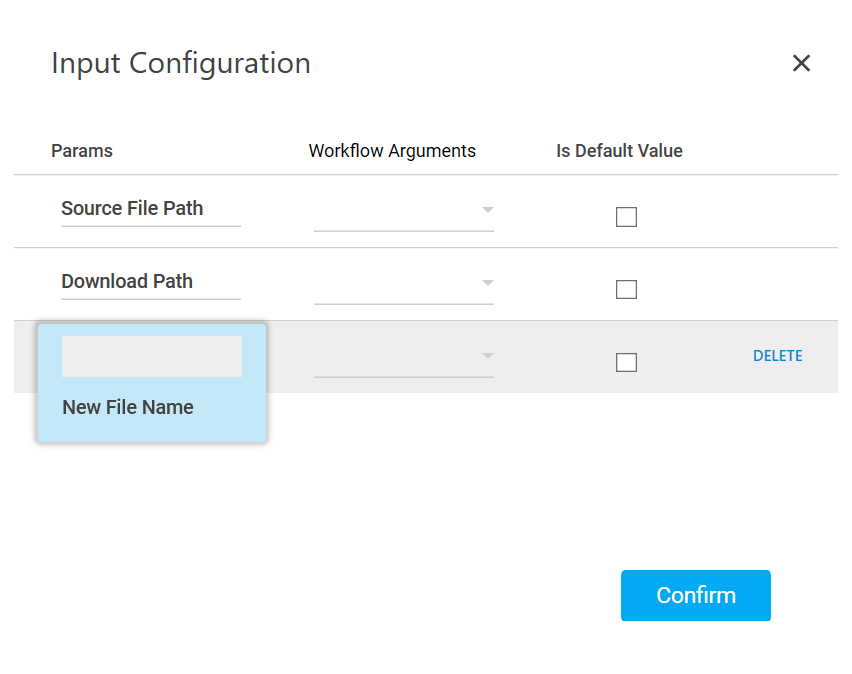

            1. Click Advanced Options and select New File Name from the newly created row.
            2. In the New File Name list, select the parameter holding a file name if you want to rename the downloaded file.
            3. Click Delete corresponding to a parameter you want to remove from the list of specified input parameters.
      2. You can select the Is Default Value checkbox to set the selected input parameter as the default value.
      3. Click Confirm to save the configuration.
5. In the Output list, select the parameter to map the status of the operation performed. You must pre-define the parameter as an out argument to make it available for the selection.
6. Save the process. The OneDrive 365 process with the Download File operation is created and saved.
7. In the Tool bar, click Test Run, and then click Setup Environment.
