Running Robots View

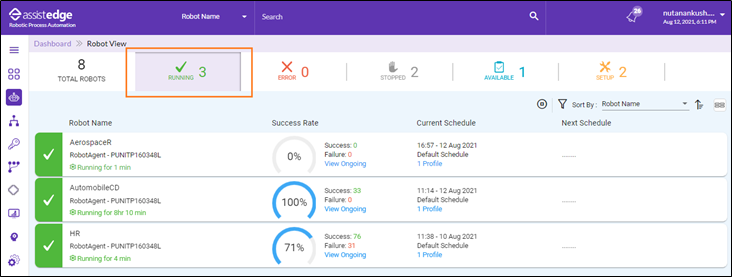

When the robot starts running the process, then the mapped robot to the selected profile appears in the Running Robots list view. Running Robots tab displays all the running robots in the system.

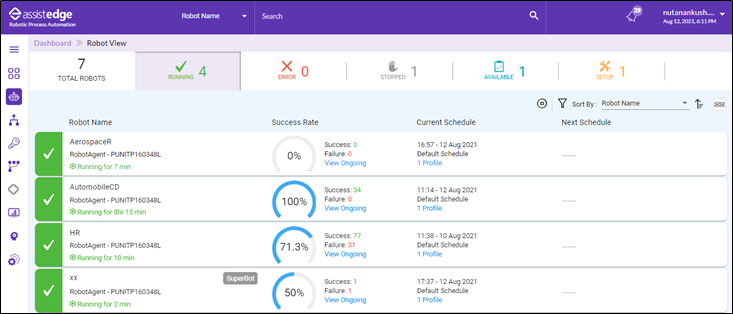

Super bot when not executing the process displays grey color corresponding to Robot Name. When the Super bot is executing the process displays green color corresponding to Robot Name as shown following.





The following table includes description of the details associated with the running robots:



Running Robots Details

Description

Robot Name

Displays the name of robot. If the robot is Superbot, it displays green color corresponding to the robot name.

Success Rate

Displays the success rate of robot processing. Click View Ongoing to view the details associated with the process currently being processed by the robot.

Current Schedule

Displays the current schedule details

Next Schedule

Displays the next schedule of the robot

































To run the robots:

  1. Navigate to Robot View and start the robot in following ways:
    • In the Error/ Stop/ Total View Status, click the ( Start) icon corresponding to robot which you want to run the automation request.
      OR
    • By selecting APPLY & START option upon setting up the robot in the Setup Status view.

Then, robot appears in the running robots list.

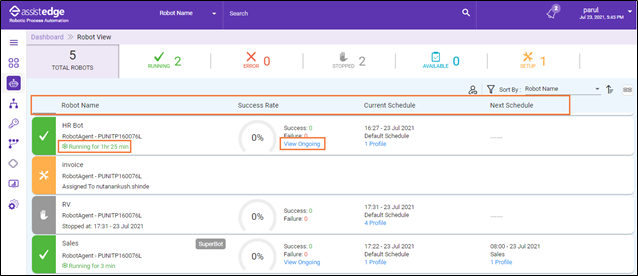

  1. Open the Running robots view to view the success percentage, current schedule of the running robot, and the next schedule planned for the robot.
  2. Click View Ongoing process option to view the step details of the process currently being processed by the robot. The details in View Ongoing section can be seen only in-case the robot is executing the process.
    1. If the robot is executing the process automation requests or action requests, the gear icon below the robot name rotates, indicating that the job is in progress.
    2. The gear in a static state indicates that the robot is still waiting for process automation load.
  3. You can Connect the robots to the particular profile queues.
    1. Click the   (Connect) icon  corresponding to the robot which you want to connect.

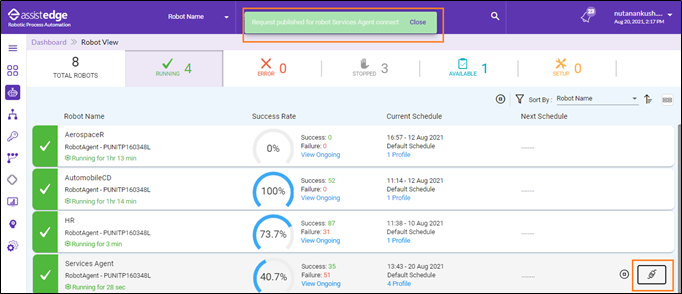

    2. A message appears when the message is sent as ConnectRobot request(s) sent successfully. Once the robot is connected, then a message appears as Connected Robot <Robot Name> on the page.





  1. You can Disconnect the robots to the profile queues.
    1. In the Running Robot status, click the    (Disconnect) icon  corresponding to the robot which you want to connect.

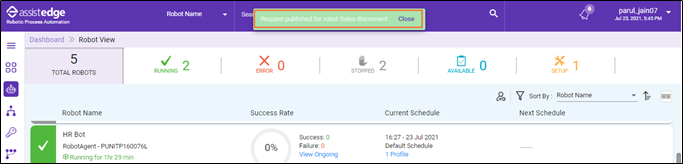

    2. A message appears when the message is sent as DisconnectRobot request(s) sent successfully. Once the robot is disconnected, then a message appears as Disconnected Robot <Robot Name> on the page.



  1. You can Stop either particular robot or multiple robots at once.
    1. If you want to stop particular robot, click the  (Stop) icon corresponding to particular robot which you want to stop.
    2. If you want to stop multiple robot, click  the  (Stop) icon at the top bar to stop multiple robots. For more information about stopping the robots, see Stopped Robots.
    3. A message appears when the message is sent as StopRobot request(s) sent successfully. Once the robot is stopped, then a message appears as Stopped Robot <Robot Name> on the page.
